Drone technology brings fun, but can also disrupt daily life.
Ubiquitous noise harassment, spy cameras, or unauthorized entry.
More areas are using drone technology, but not everyone uses it legally. Our system is designed to prevent these illegal activities.

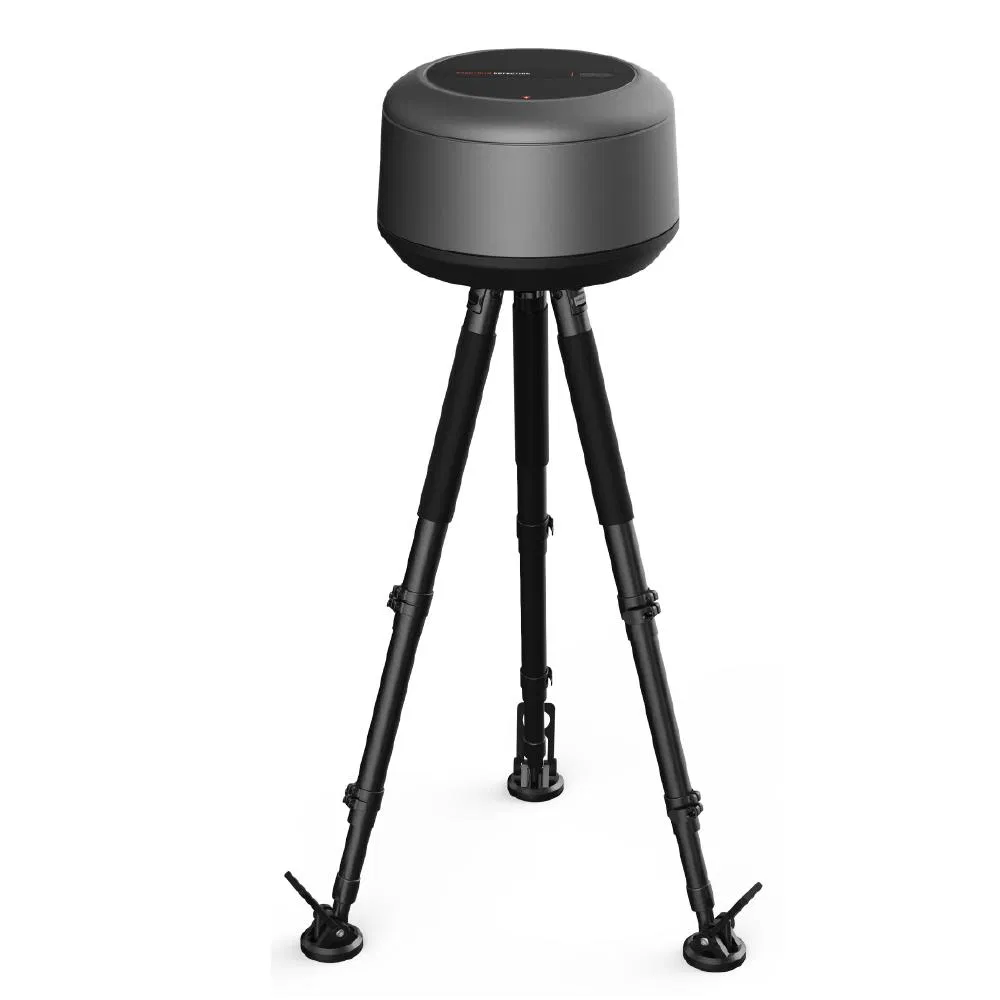

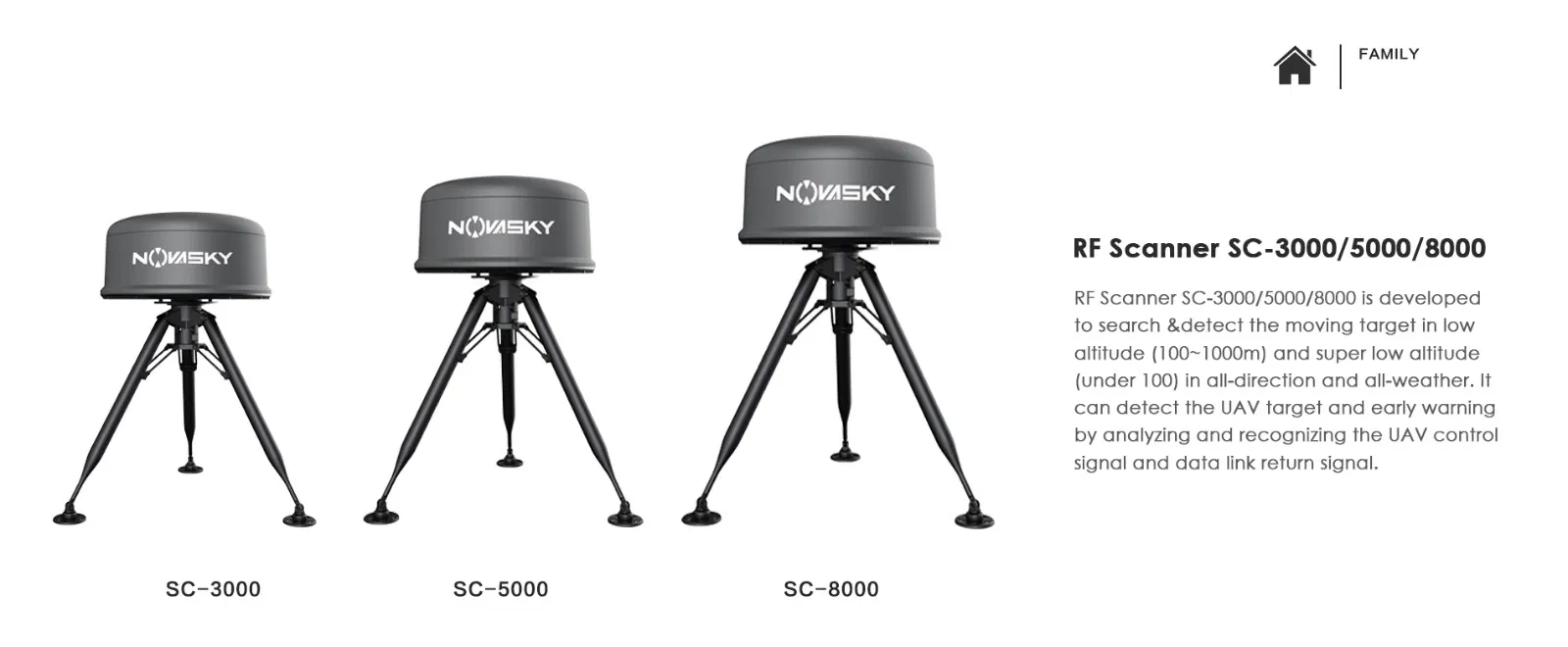

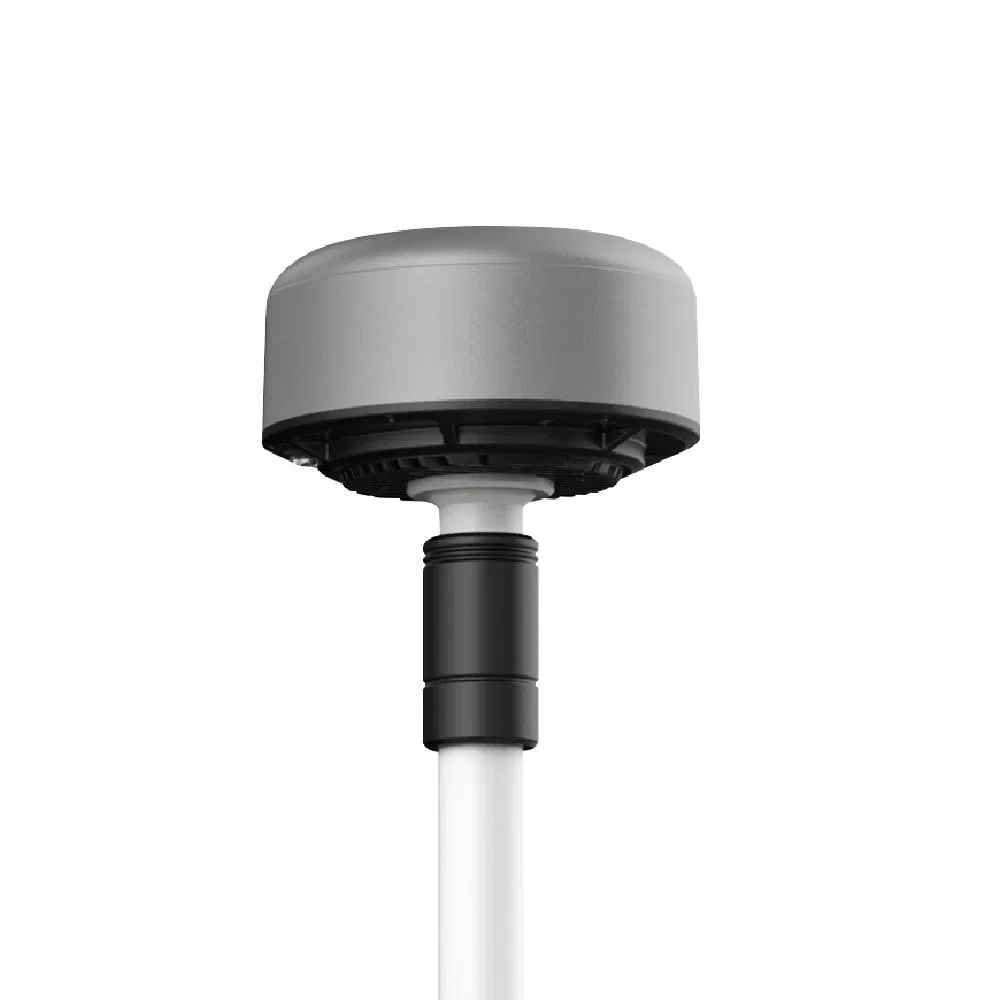

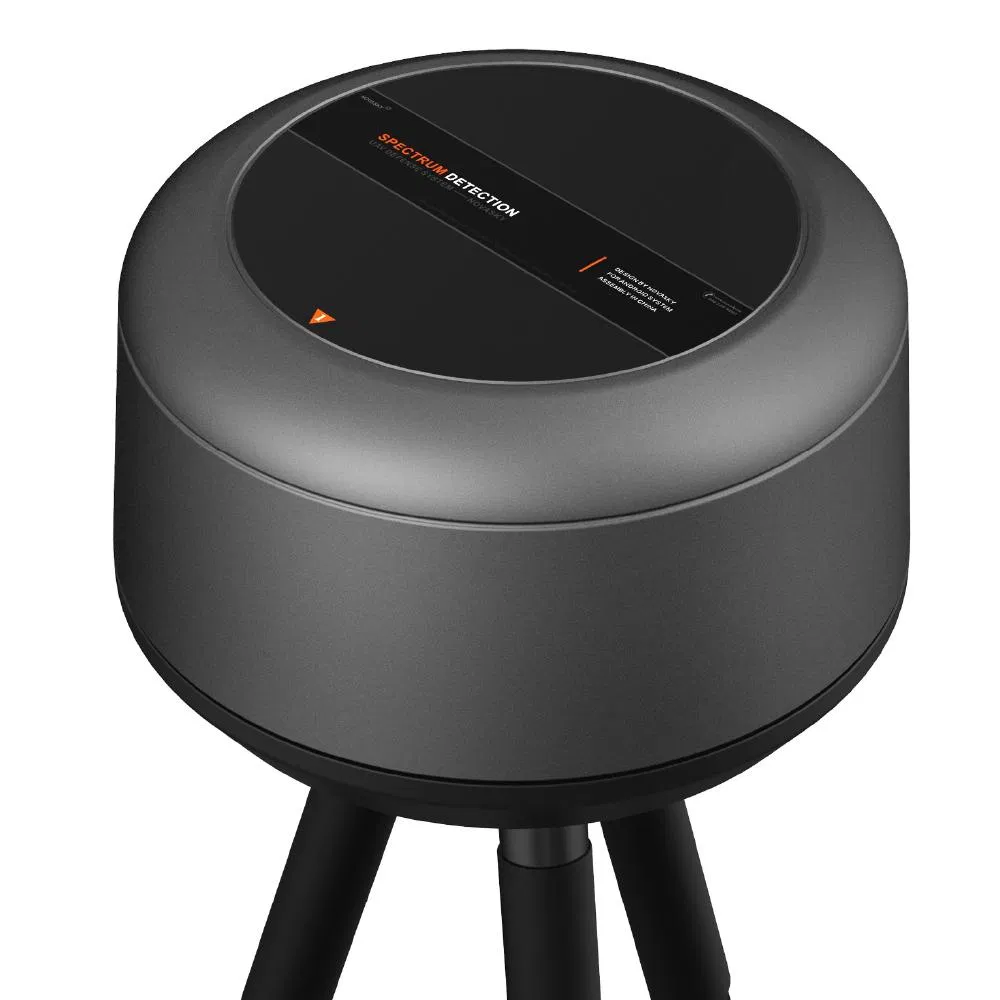

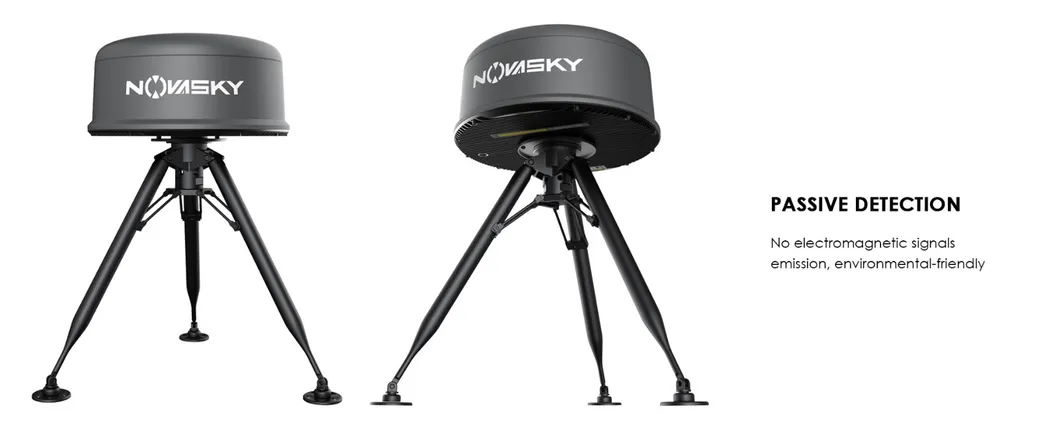

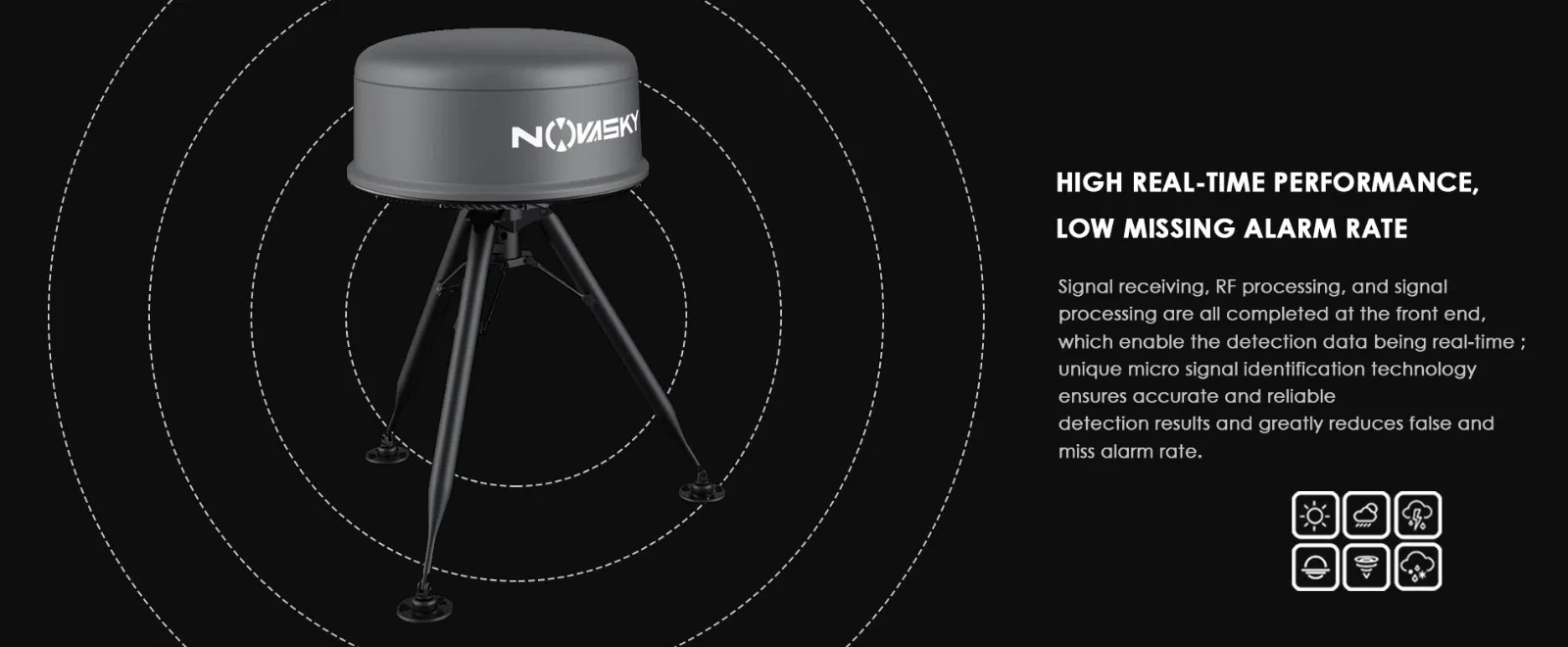

RF Scanner SC-S3000/S5000/S8000
The RF Scanner is developed to search and detect moving targets at low altitude (100~1000m) and super low altitude (under 100m) in all directions and all weather. It can detect UAV targets and provide early warning by analyzing and recognizing UAV control signals and data link return signals. Furthermore, multi-passive radar networking can realize direction and distance measurement for UAVs and their controllers.
| Detection Range | 3km/5km/8km |
| Detecting Frequency Range | 70MHz~6GHz |
| Detection Signal | 360° horizontally mechanical scanning + vertically wide beam phased scanning |
| Detection Accuracy | ≤3° (RMS) |
| Measuring Dimensionality | Distance / azimuth / pitching angle / speed |
| Communication Port | LAN |
| Power Consumption | ≤20W~75W |
| Protection Class | IP65 |
Certifications
Our Exhibition

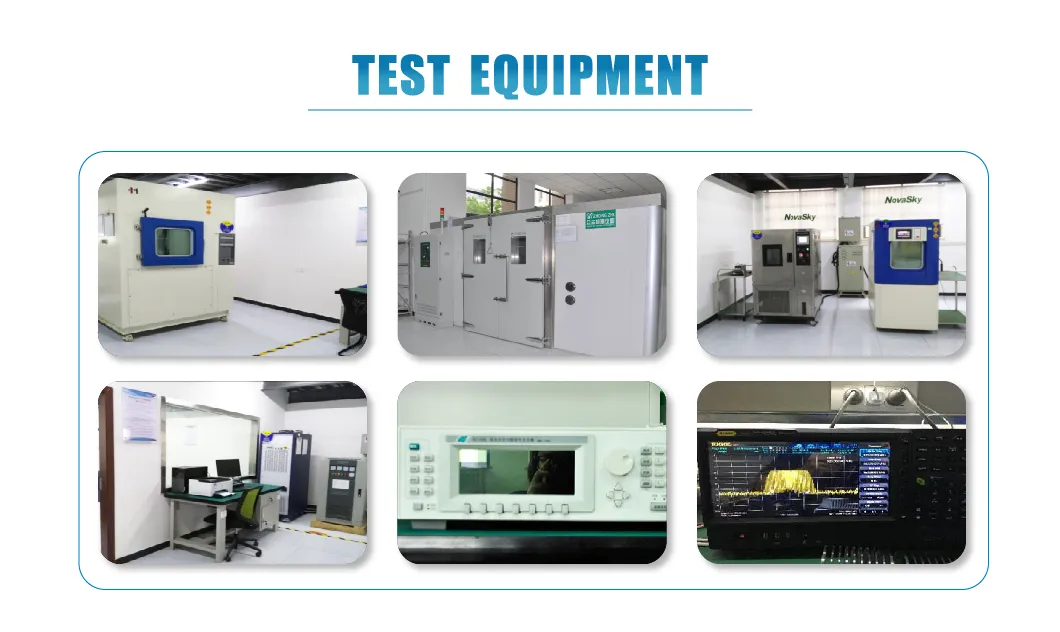

Test Equipment
