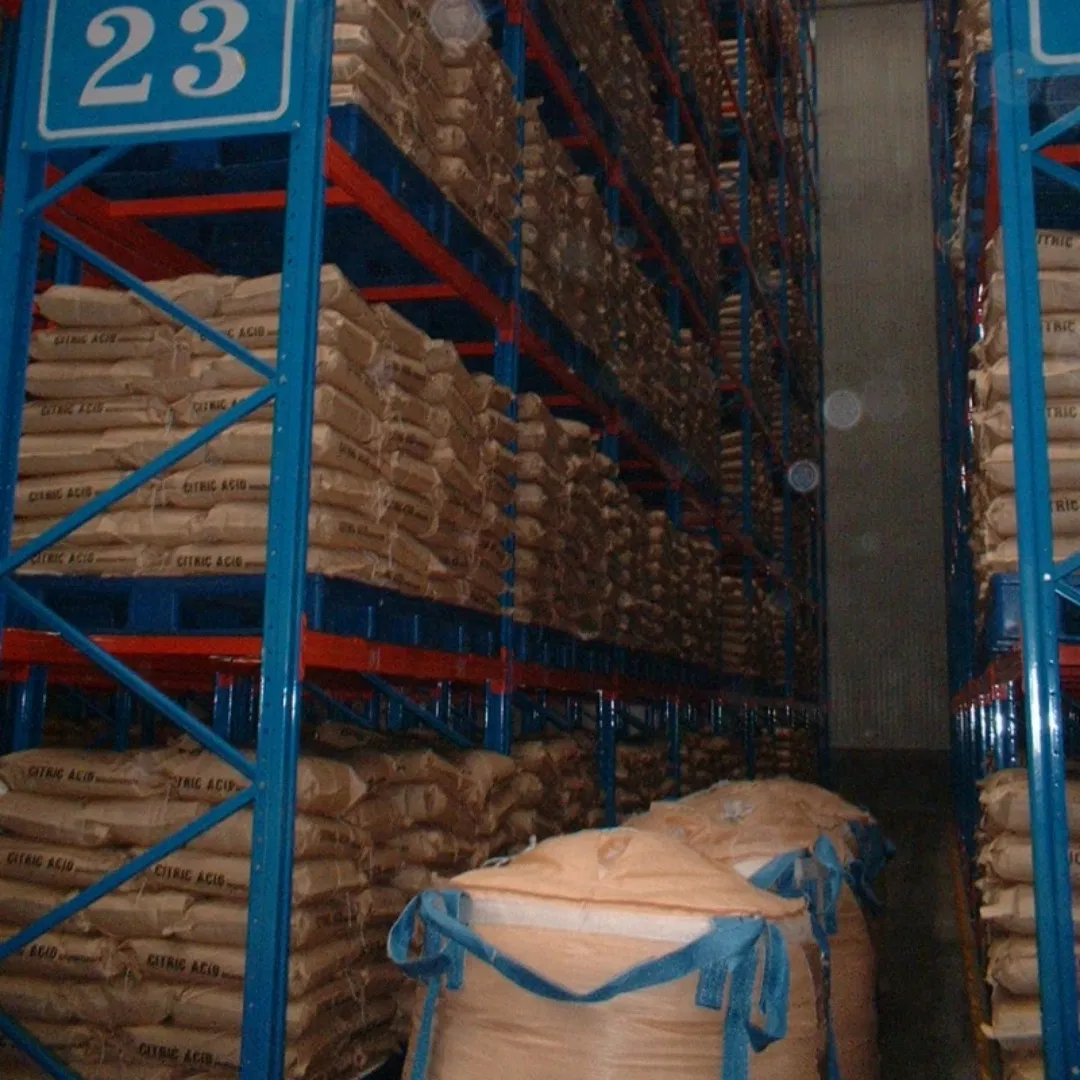

Heavy-Duty Vna Rack System for Industrial Warehouse Organization Metal Narrow Aisle Rack

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Product Information

Model NO.
Narrow Aisle Rack
Material
Steel Q235B
Height
5-15m
Load Capacity
500kg - 3000kg per layer
Surface
Powder Coated
Certificate
CE / ISO / TUV
Structure
Multi-Level Racking
Mobility
Adjustable

Heavy-Duty VNA Rack System

VNA racking (ultra-narrow aisle racking) is a high-density storage system specifically designed to maximize the utilization of warehouse space. It is typically used in conjunction with three-way stacker forklifts or narrow aisle forklifts.

  • Space Optimization: Saves more than 50% aisle space and offers much larger storage capacity than ordinary shelves.
  • Efficiency: Faster access and retrieval speeds, suitable for high-frequency operation warehouses.
  • Intelligent Management: Compatible with WMS (Warehouse Management System) for automated tracking.
  • Versatility: Ideal for food, beverage, electronics, chemicals, and e-commerce logistics.
  • Safety: Made of high-strength steel with strong load-bearing capacity (up to 2-3 tons per layer).

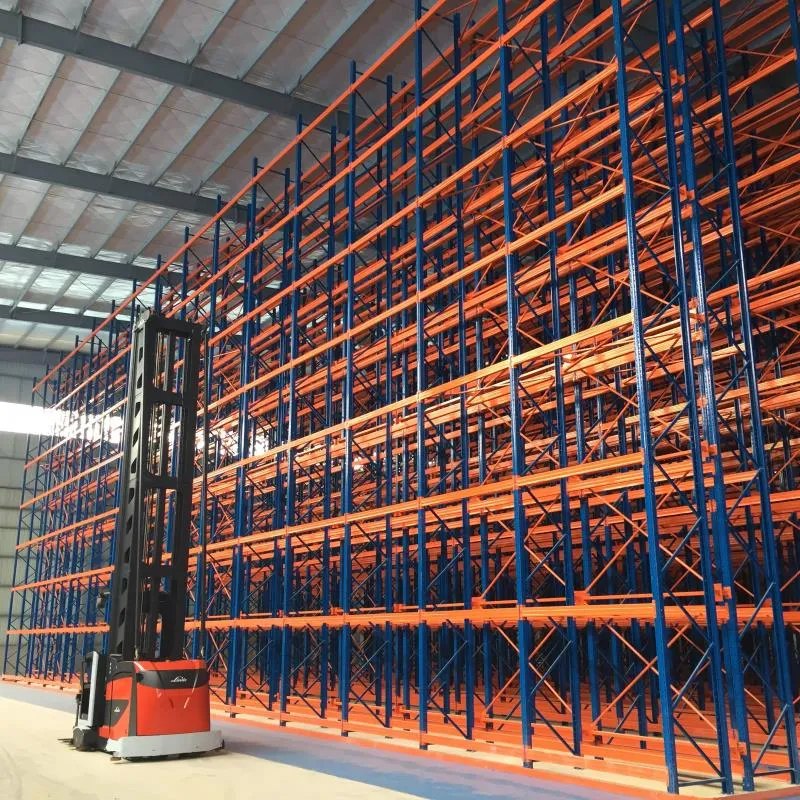

VNA Rack System Layout
Industrial Warehouse Organization

Technical Specifications

MaterialQ235B Steel Weight Capacity1000kg/arm (Customizable)
Size / ColorCustomized to Requirements FinishPowder coating / Hot Dip Galvanized
CertificationRMI / CE / ISO / TUV / AS4084-2012
PackingStandard Export Package (Banding, Plastic Film, Wood Pallet)

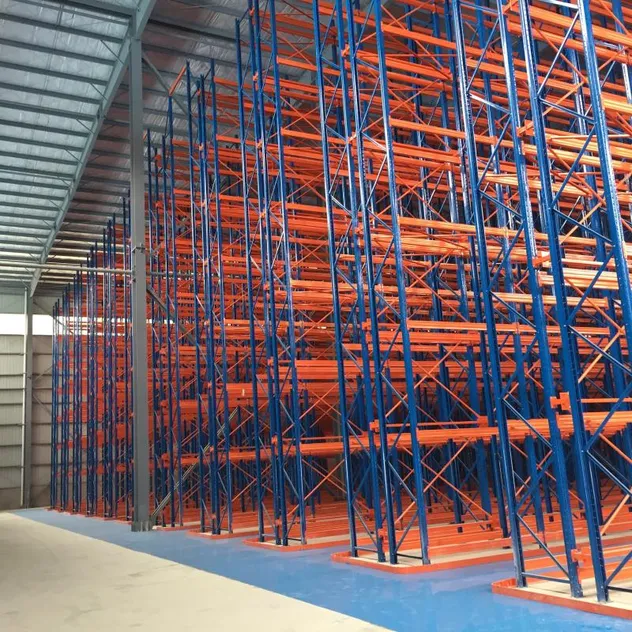

Right Elevation
Right Elevation

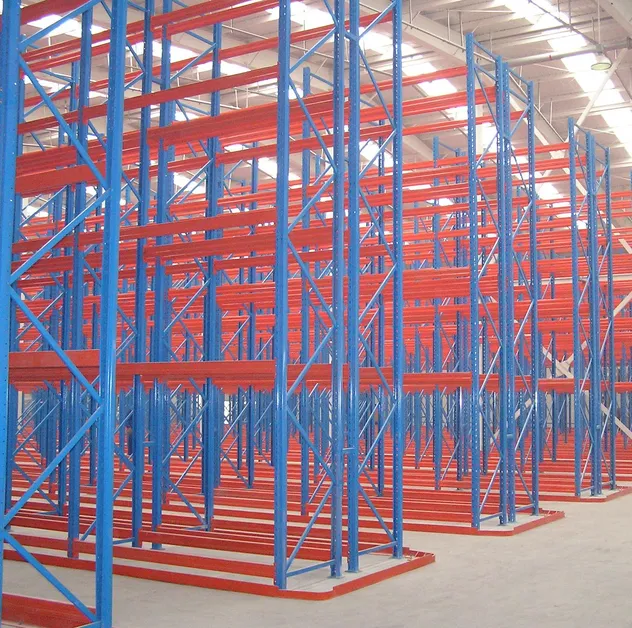

Left Elevation
Left Elevation

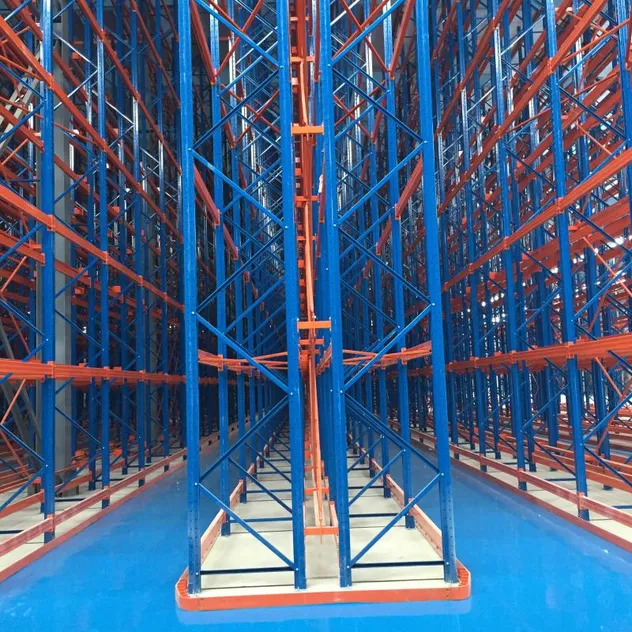

Front Elevation
Front Elevation

Drawings & Applications

Our solutions cover E-commerce, Cold Chain storage (-18℃ to 4℃), Manufacturing parts, and Third-party logistics (3PL) bonded warehouses.

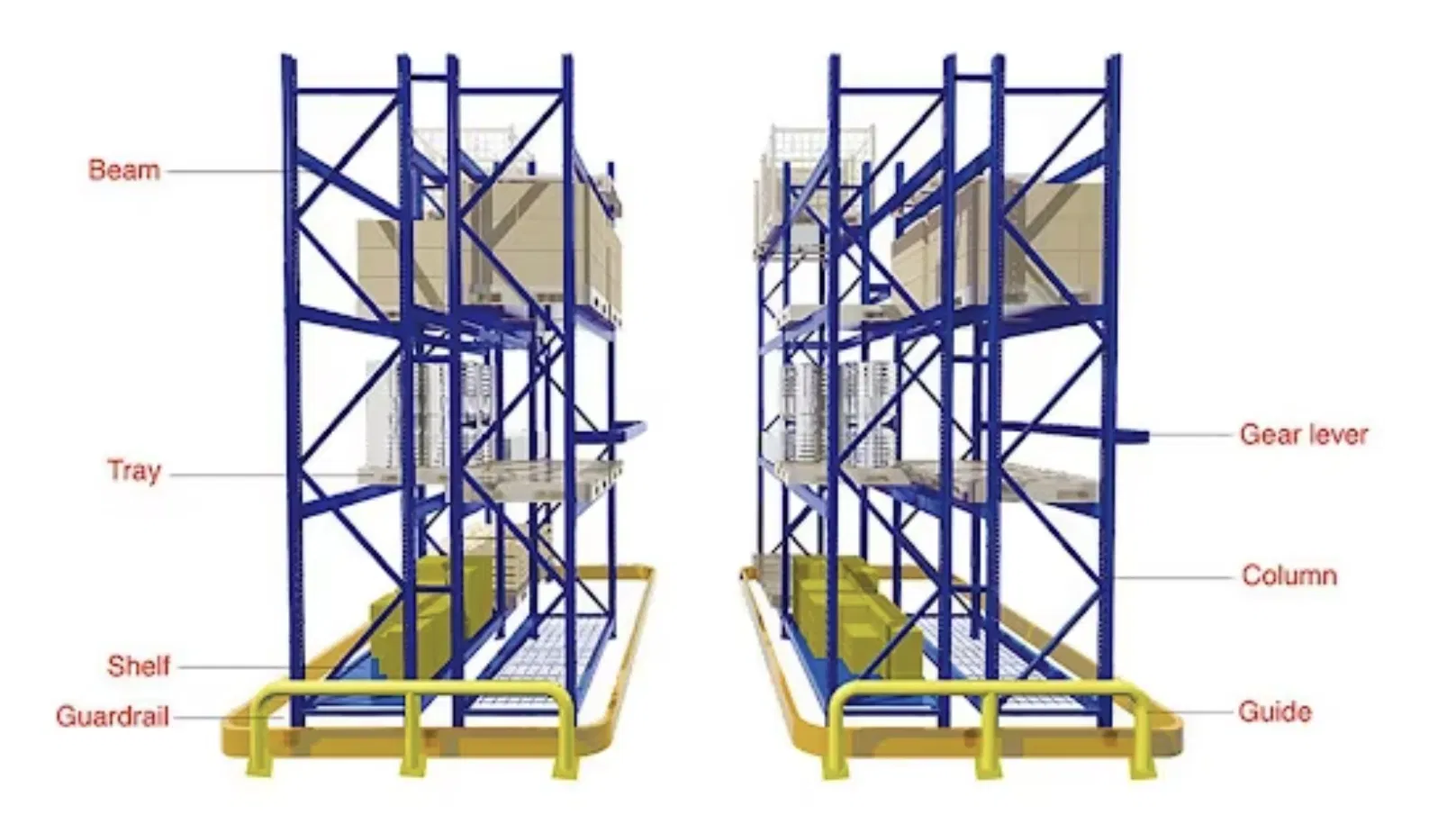

Technical Drawing

Why Choose Our Racking Solutions

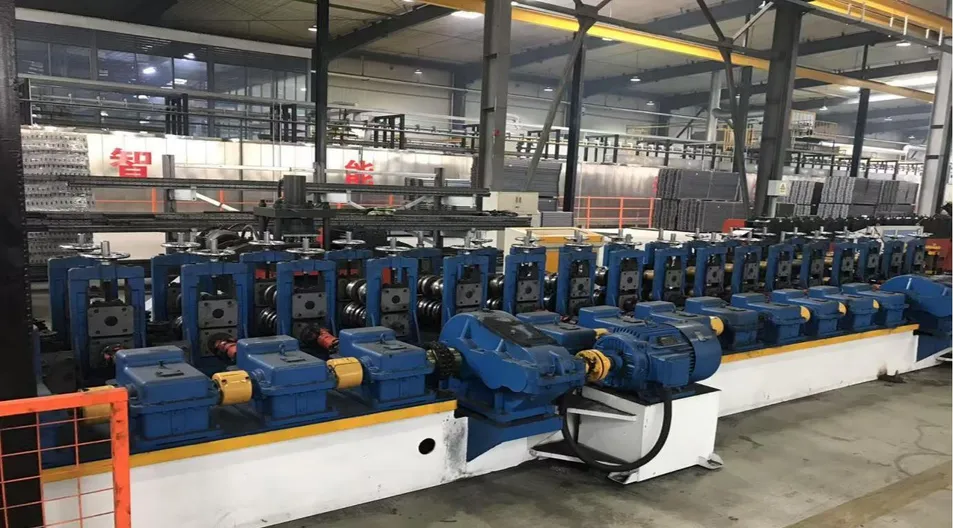

Professional Manufacturing: Established in 2008, featuring automated powder coating lines and cold-rolling section steel lines. Annual production capacity exceeds 20,000 tons.

After-Sales Support: 12-month standard warranty, global 24/7 technical assistance, and on-site operation training.

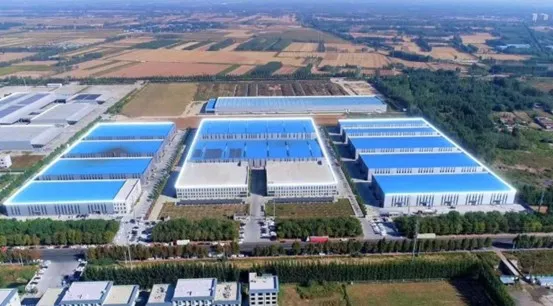

Warehouse Equipment Manufacturing
Rack Installation

Frequently Asked Questions

Are you a factory or trading company?
We are a specialized manufactory for high-quality storage racks with extensive production experience.
What is the raw material used in your products?
We primarily use carbon steel Q235B for normal environments. For cold storage (below -18°C), we utilize Q345D steel to ensure structural integrity.
Do you have a Minimum Order Quantity (MOQ)?
No, we do not have strict MOQ requirements for most products. However, a 1*20ft container is recommended to optimize shipping costs.
What is the typical delivery time?
Delivery usually takes 15 to 30 days after receipt of the deposit, depending on the order volume and rack specifications.
How do I handle the installation of the racks?
We provide comprehensive installation videos and detailed drawings. If necessary, we can dispatch an engineer or installation team to guide the process on-site.
Which port is used for loading?
Our standard loading port is Qingdao Port, but we can arrange shipments through other ports based on your specific logistics needs.
