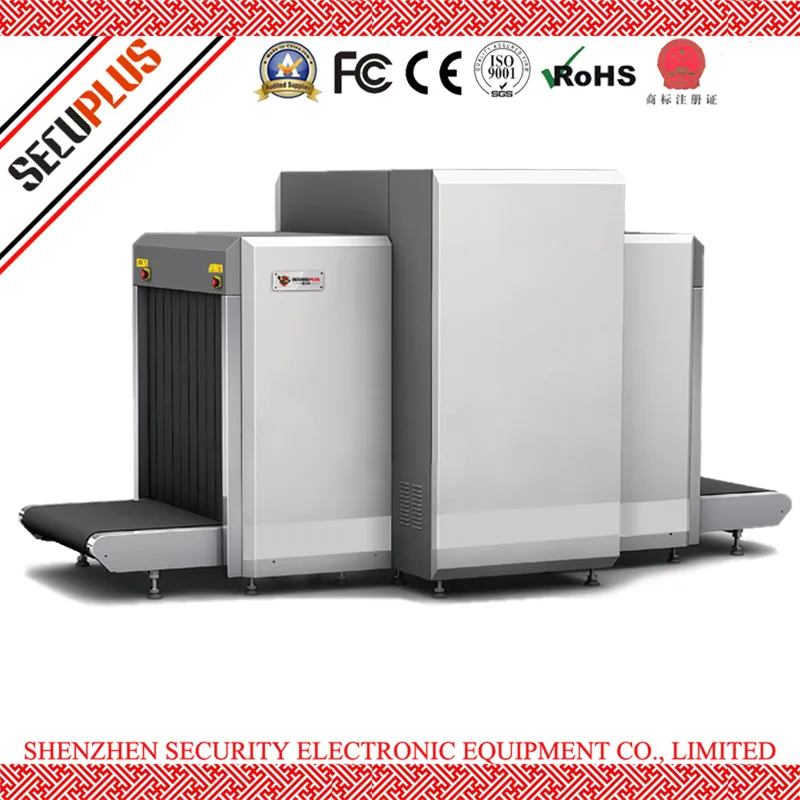

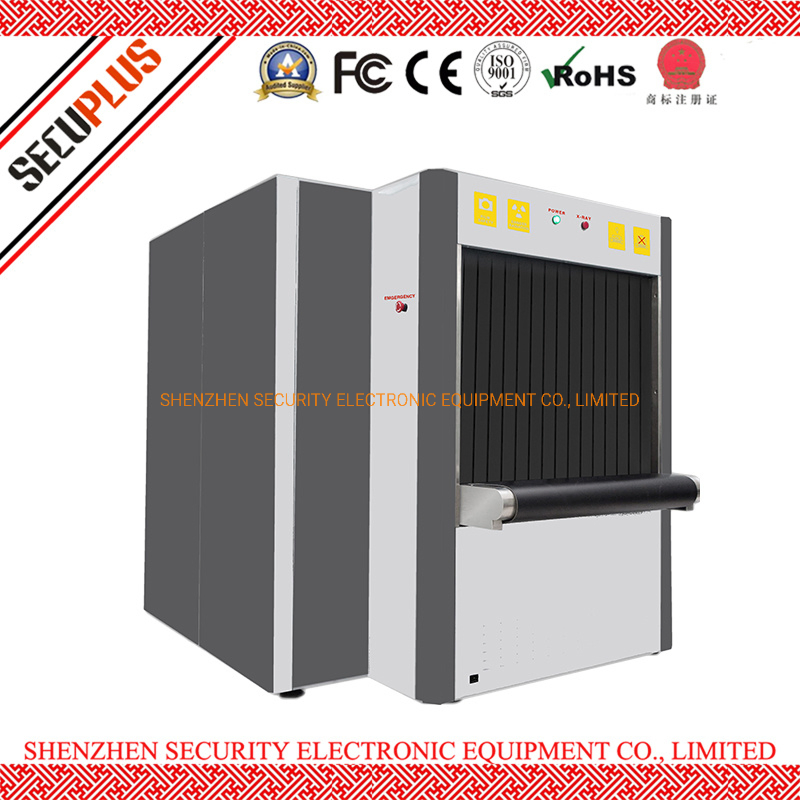

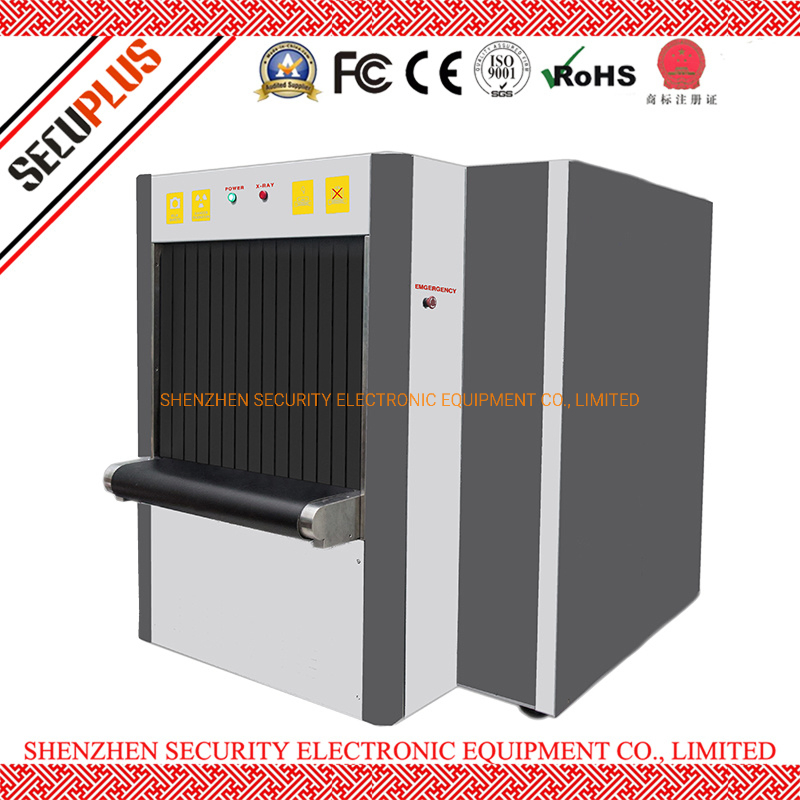

Logistics and Express Security Scanning Systems X-ray Baggage Scanner for Luggage Inspection SPX100100D
This X-ray machine helps reduce false alarm rates and allows for enhanced security while potentially driving down operational costs. It is designed to resolve alarms from other explosives detection systems efficiently, offering increased detection rates and reduced processing times for passenger baggage.
★ High Light:
✔ Powerful image dealing ability
✔ Accurate Z7, Z8, Z9 mark for explosives and narcotics
✔ Windows 7 operation system
✔ Automatic save scanned image
✔ Friendly operation system and reliable performance
Technical Characteristics
◈ Duel energy penetration system
◈ TIP program and clear distinct images
◈ Scanned image zoom up to 64 times
◈ 13 kinds of image processing functions
◈ 6 kinds of pseudo color display
Application Fields
Train Stations; Metro Station; Jail House; Embassy; Border check points; Entertainment venues; Tourist attractions; Office buildings; Shopping malls; Factories, etc. Suitable for security inspection of briefcase, hand luggage, postal parcels and other small packages.
General Specifications
| Tunnel size | 1010mm*1005mm (W*H) |
| Conveyor speed | 0.20m/s |
| Maximum load | 200kgs (evenly distributed) |
| Wire resolution | 40AWG (0.0787mm wire) |
| Penetration (steel) | 38mm guarantee, 40mm typical |
| Display | 21.5 inch color LCD monitor (1280*1024) |
| Anode voltage | 140-160Kv |
| X ray generator | 2 Units (Dual-view) |
| Beam direction | Top / Side |
| Storage capacity | At least 100,000 images |
| X ray leakage | <0.5 μSv /h (International safety standard) |
| Physical size | 3595.5*1685*1795mm (L*W*H) |
| Weight | 1480kgs |
Our Services
✈ Operation training for end users
✈ Free factory training for engineers
✈ One year free spare parts
✈ Lifetime technical support
✈ Immediate after-sales response
Product Gallery
Frequently Asked Questions
Q1: What is the maximum tunnel size for the SPX100100D?
A: The tunnel size is 1010mm wide by 1005mm high, making it ideal for large luggage and postal parcels.
Q2: Can this scanner detect explosives and narcotics?
A: Yes, it features accurate Z7, Z8, and Z9 marks specifically designed to identify explosive and narcotic substances.
Q3: What is the steel penetration capability?
A: The system guarantees 38mm steel penetration, with typical performance reaching up to 40mm.
Q4: Does the system support dual-view imaging?
A: Yes, it is equipped with a double X-ray generator system to provide dual-view imaging (top and side) for better detection.
Q5: What kind of after-sales support is provided?
A: We provide a one-year free spare parts warranty, lifetime technical support, and operational training for end-users.
Q6: Is the radiation level safe for operators?
A: Absolutely. The X-ray leakage is less than 0.5 μSv/h at a distance of 5cm, which meets all international health and safety standards.
