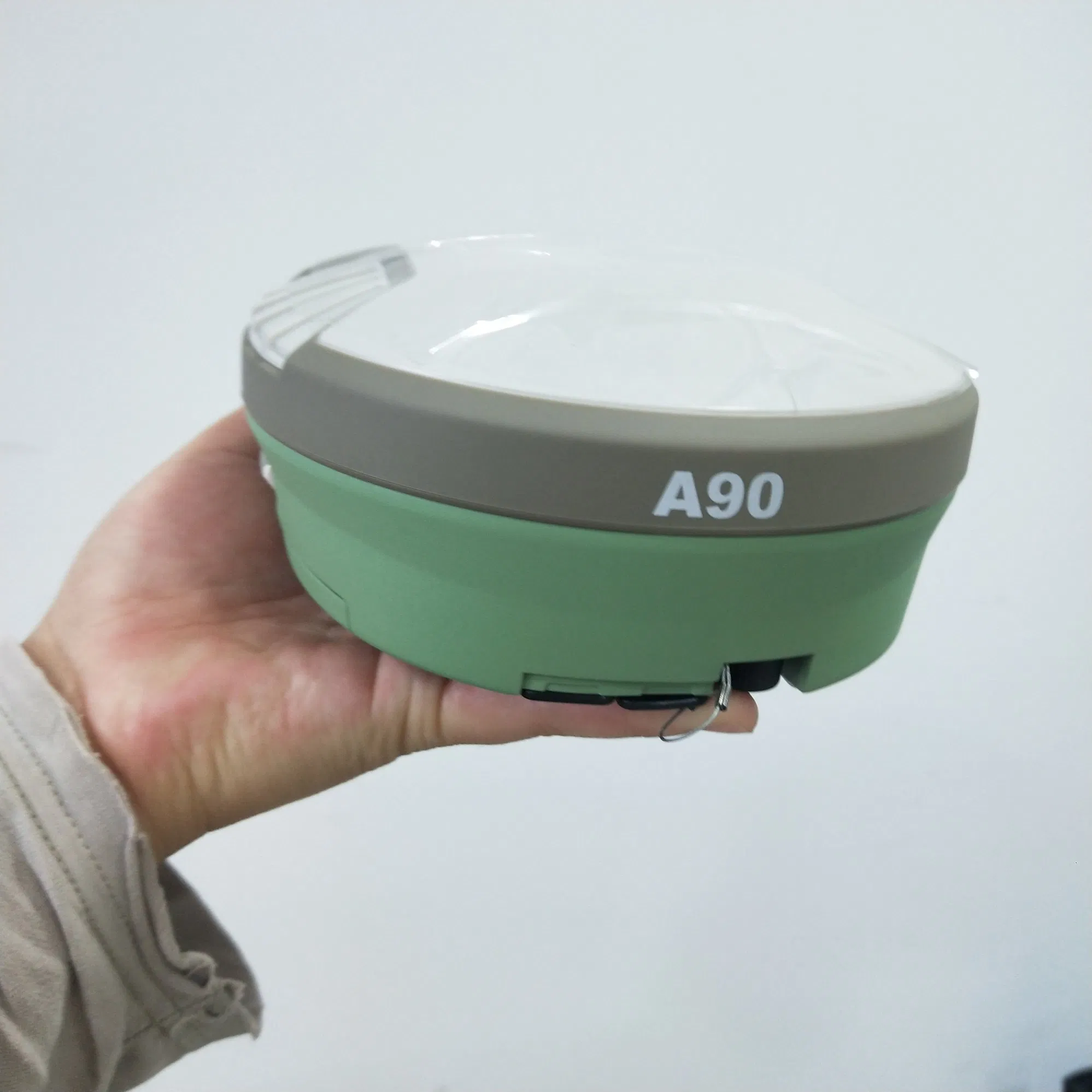

High Performance Unique Brand Land Survey GPS Gnss A90 with 800 Channles
High Performance Unique Brand Land Survey GPS Gnss A90 with 800 Channles
High Performance Unique Brand Land Survey GPS Gnss A90 with 800 Channles
High Performance Unique Brand Land Survey GPS Gnss A90 with 800 Channles
High Performance Unique Brand Land Survey GPS Gnss A90 with 800 Channles
1 / 5
High Performance Unique Brand Land Survey GPS Gnss A90 with 800 Channles
High Performance Unique Brand Land Survey GPS Gnss A90 with 800 Channles
High Performance Unique Brand Land Survey GPS Gnss A90 with 800 Channles
High Performance Unique Brand Land Survey GPS Gnss A90 with 800 Channles
High Performance Unique Brand Land Survey GPS Gnss A90 with 800 Channles

High Performance Unique Brand Land Survey GPS Gnss A90 with 800 Channles

Customization: Available
Brand Name: Foif A90
Motherboard: Trimble Bd990
Send Inquiry

Product Description

📊

Basic Information

Model NO.
A90
Channels
336 Channels
GPS
L1 C/a, L2e, L2c, L5
Beidou
B1, B2, B313
Glonass
L1 C/a, L2 C/a, L3 CDMA14
Galileo
E1, E5a, E5b, E5altboc, E614
Origin
China
Capacity
10000
📸

Detailed Photos

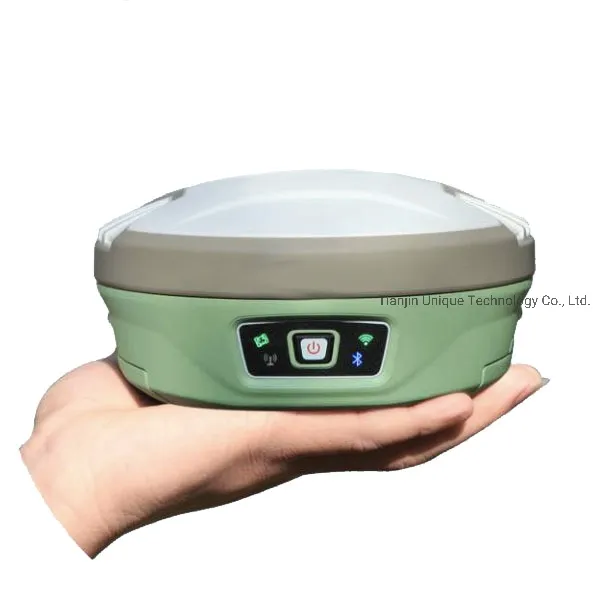

GNSS A90 View 1

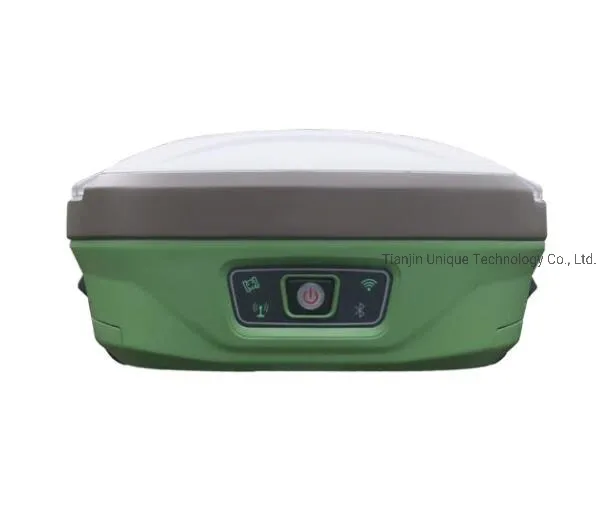

GNSS A90 View 2

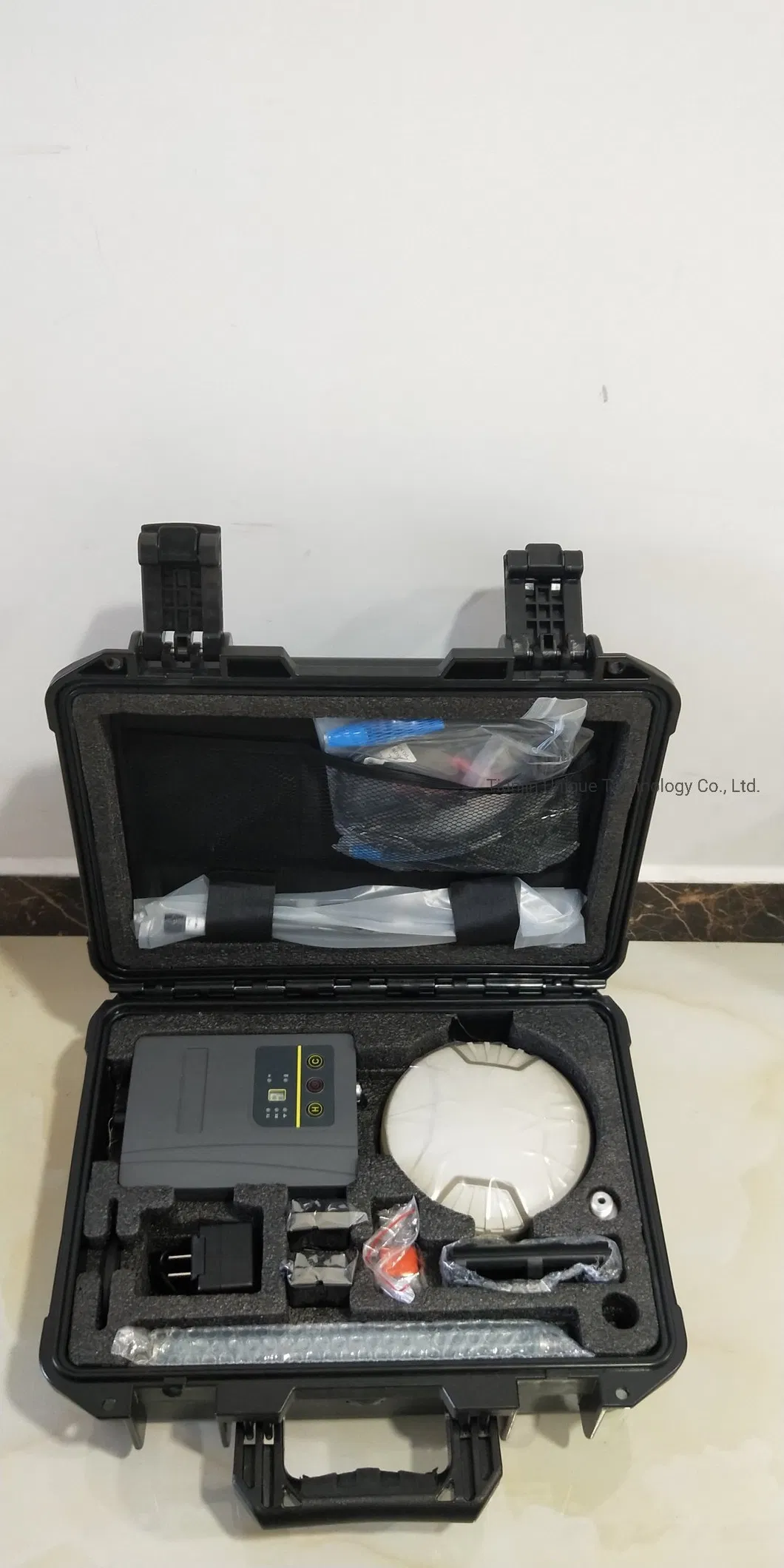

GNSS A90 View 3

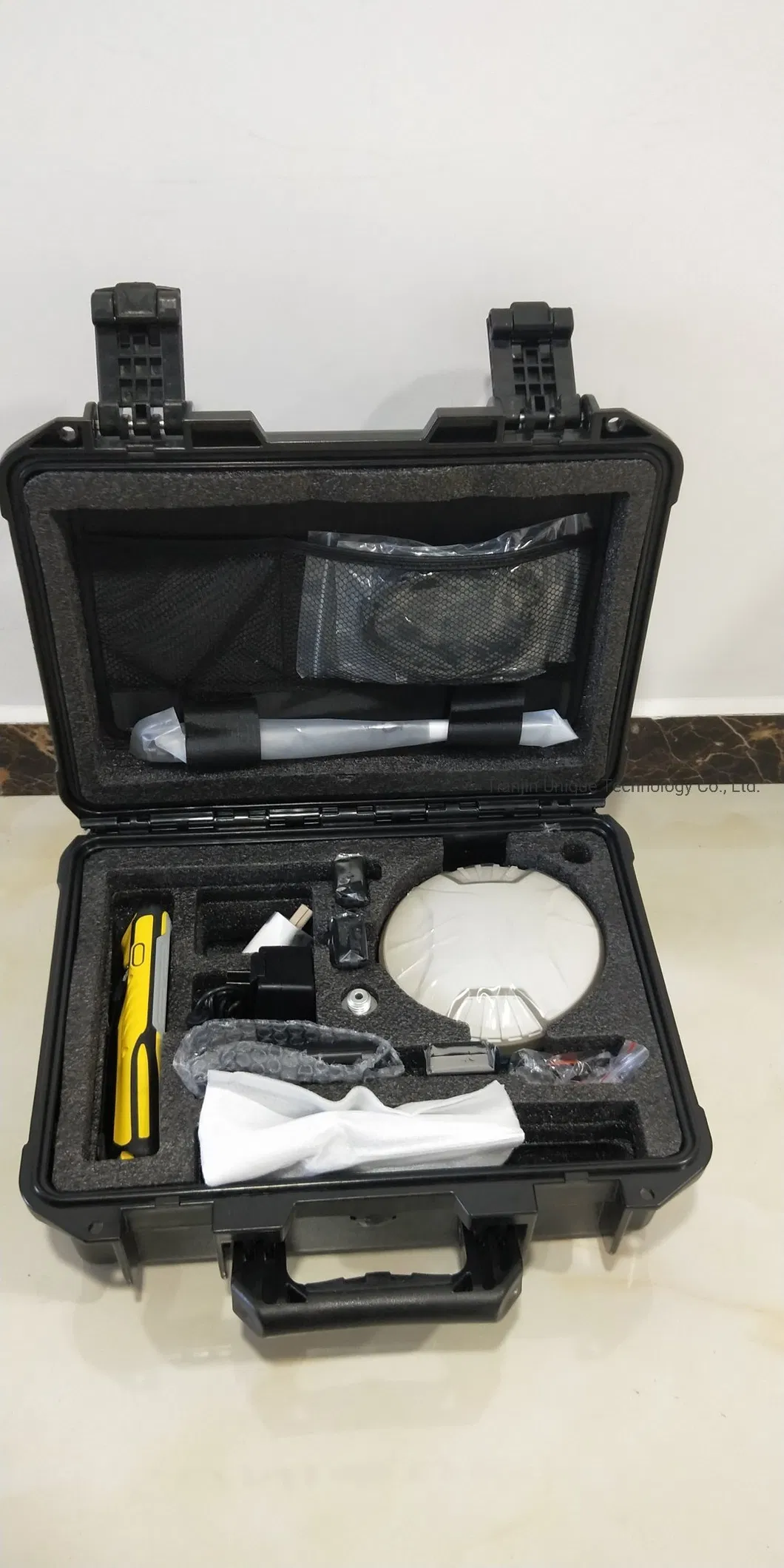

GNSS A90 View 4

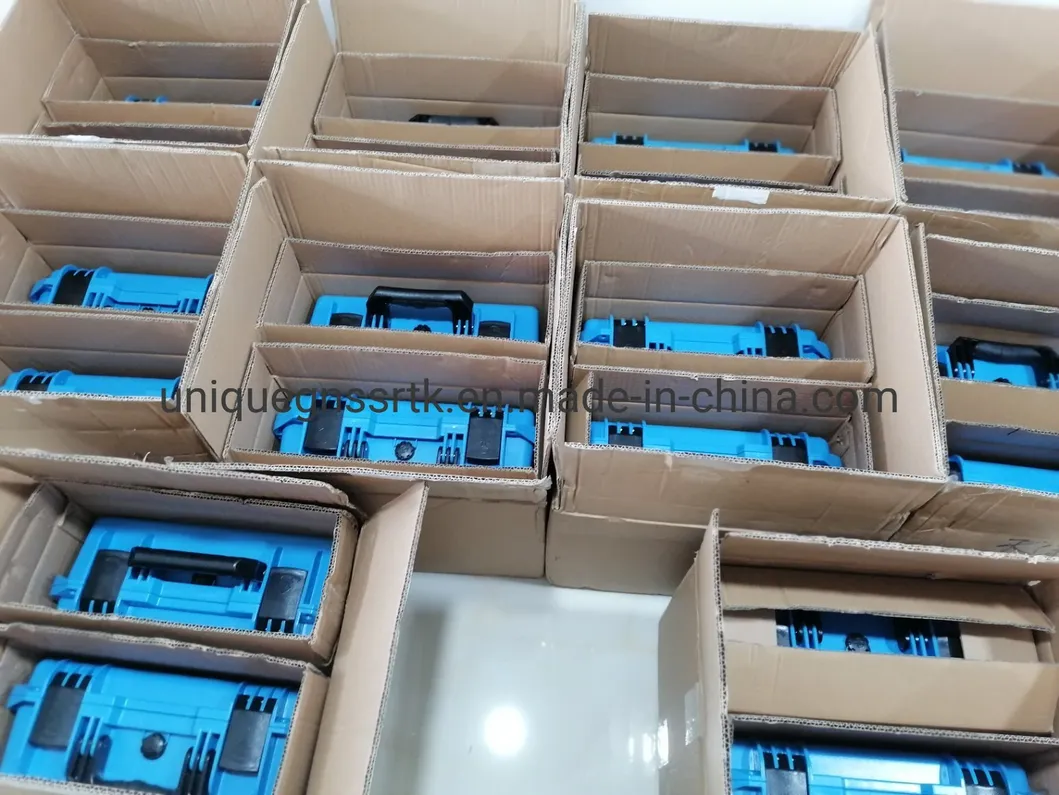

GNSS A90 View 5
⚙️

Product Specifications

GNSS GNSS board Trimble BD990
Channel 336
Update rate 5Hz (Standard to 5 Hz, can pay to activate 50 Hz)
Static Accuracy Horizon: ±( 2.5+1*10"D) mm; Vertical: ±( 5+1*10"D) mm
RTK Accuracy Horizon: ±( 8+1*10"D) mm; Vertical: ±( 15+1*10"D) mm
Power Battery Dual batteries, 7.2V/3400mAh*2 (Works at least 10 hours)
Input 9-28V DC
System OS / Memory Linux / Internal 8G; TF extended, Max≥32G
Bluetooth / Wi-Fi Bluetooth V2.1+EDR/ V4.1 Dual Mode; 802.11 b/g/n
Internal UHF TRM 101; Power 1W, Frequency 410-470 MHz
Tilt Survey Support Electric Bubble, Support tilt survey
Physical Dimensions 157mm * 76mm
Weight 1.2KGS with 2 batteries inside
Environment Temperature Work: -30ºC~+65ºC; Stock: -40ºC~+80ºC
Protection IP67 Waterproof and Dustproof
Shock Withstand 2 meters pole drop
📦

Packaging & Shipping

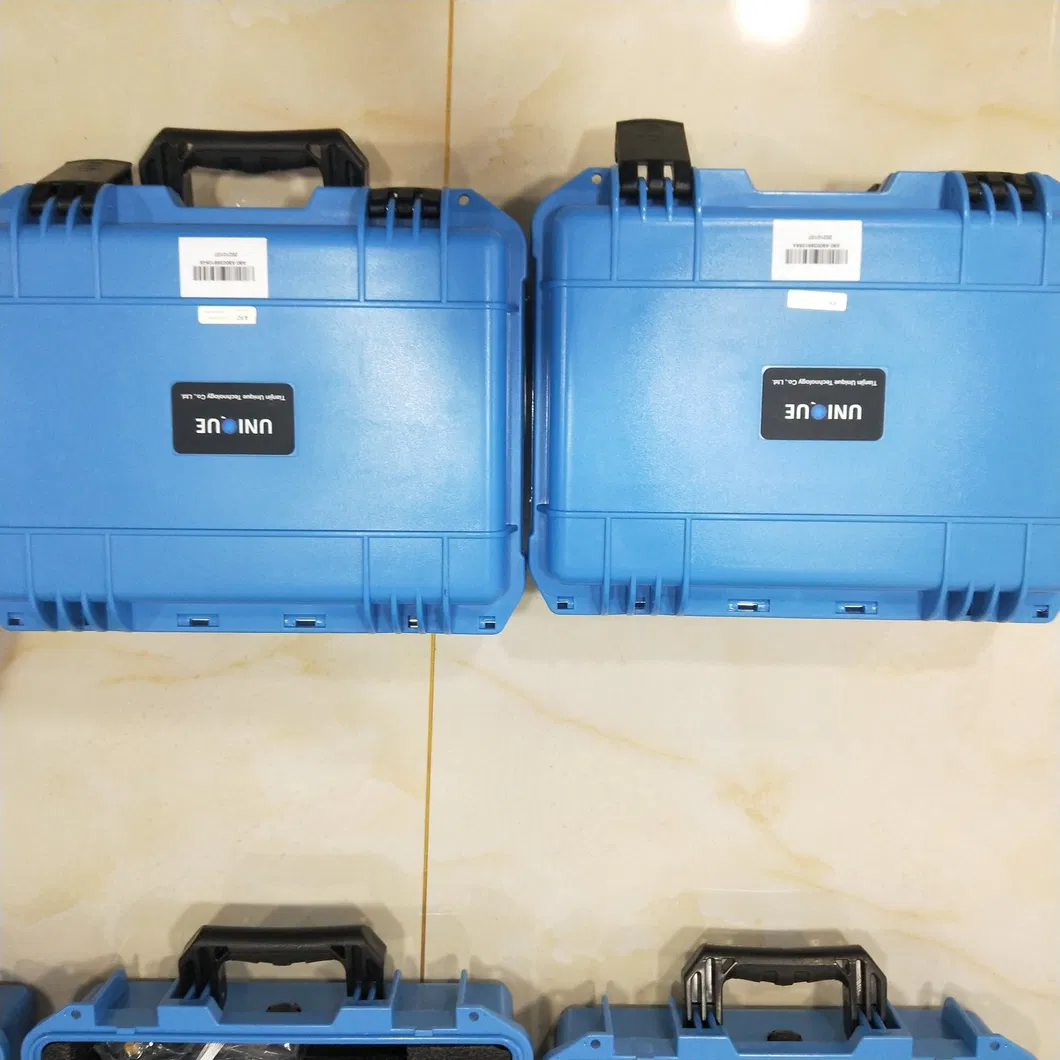

Product Packaging
❓

Frequently Asked Questions

Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
What is the average lead time?
For samples, the lead time is about 7 days. For mass production, it is 20-30 days after receiving the deposit payment.
What kinds of payment methods do you accept?
You can make the payment via bank account, Western Union or PayPal: 30% deposit in advance, 70% balance against the copy of B/L.
What is the product warranty?
We warranty our materials and workmanship. Our commitment is to your satisfaction with our products, resolving all customer issues efficiently.
Do you guarantee safe and secure delivery?
Yes, we always use high quality export packaging and specialized hazard packing for dangerous goods when required.
How are the shipping fees calculated?
Shipping cost depends on the method chosen. Express is quickest but more expensive, while sea freight is the best solution for large orders.
🏢
