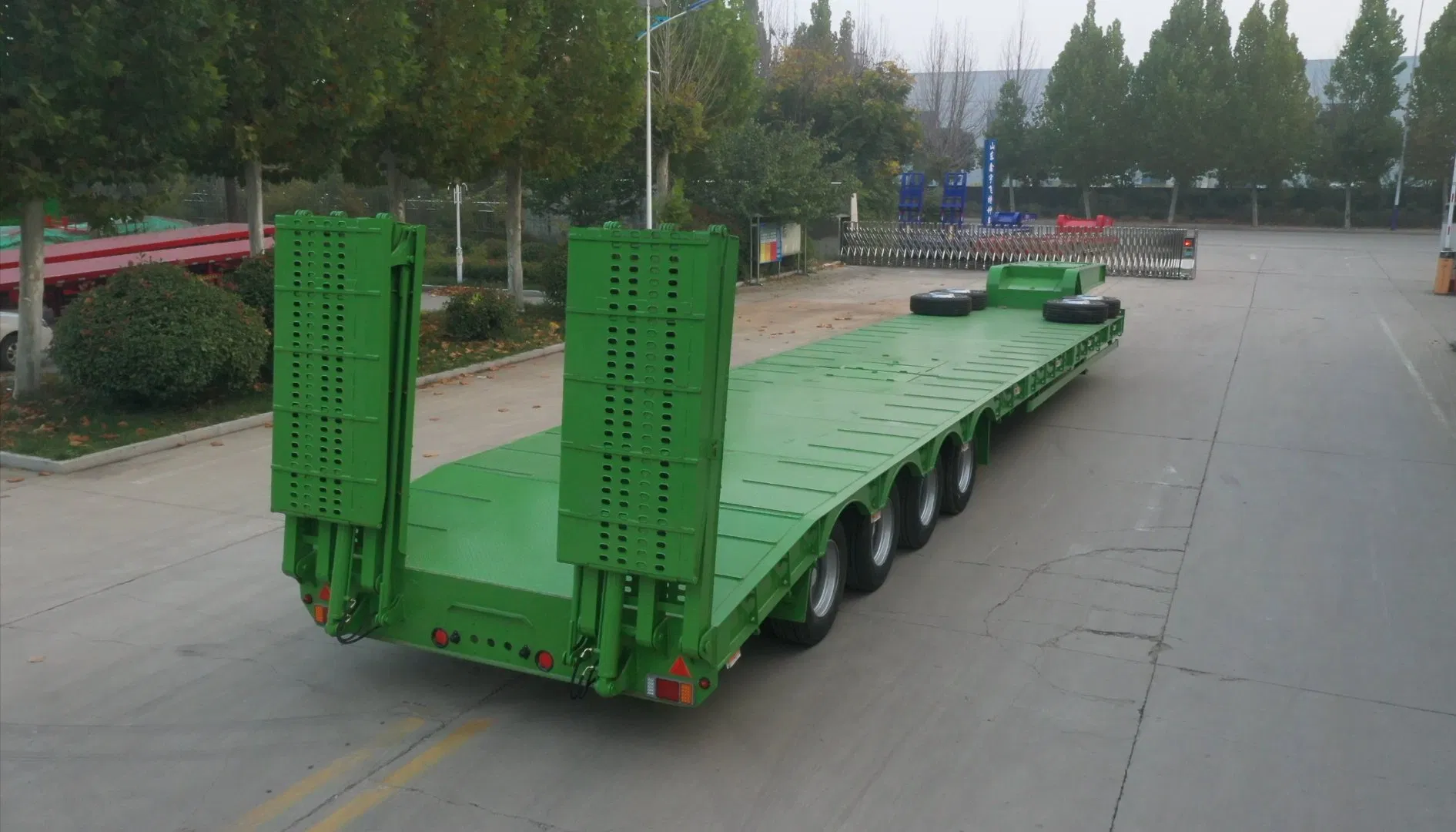

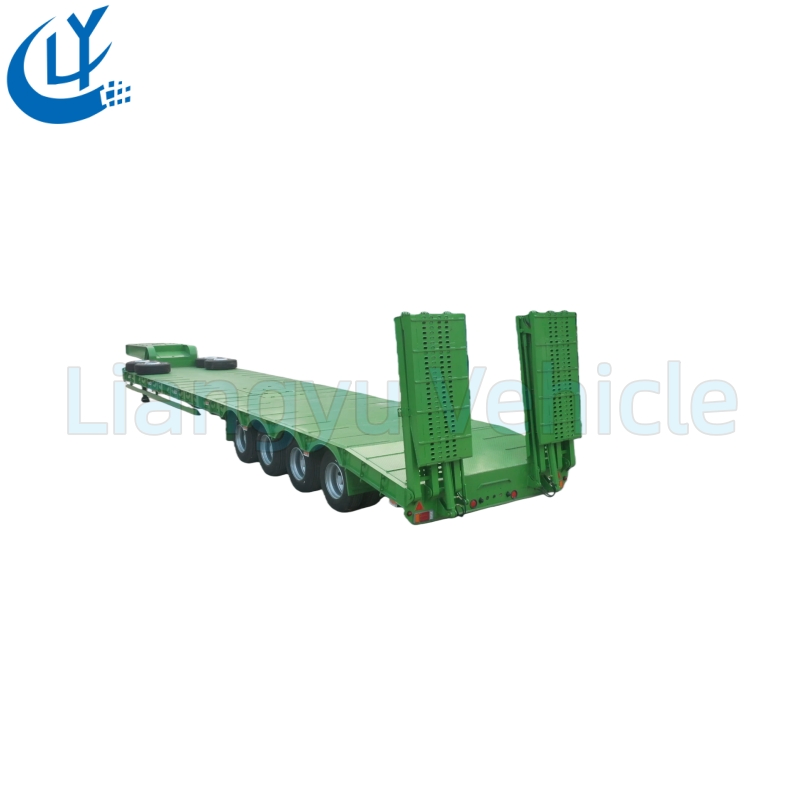

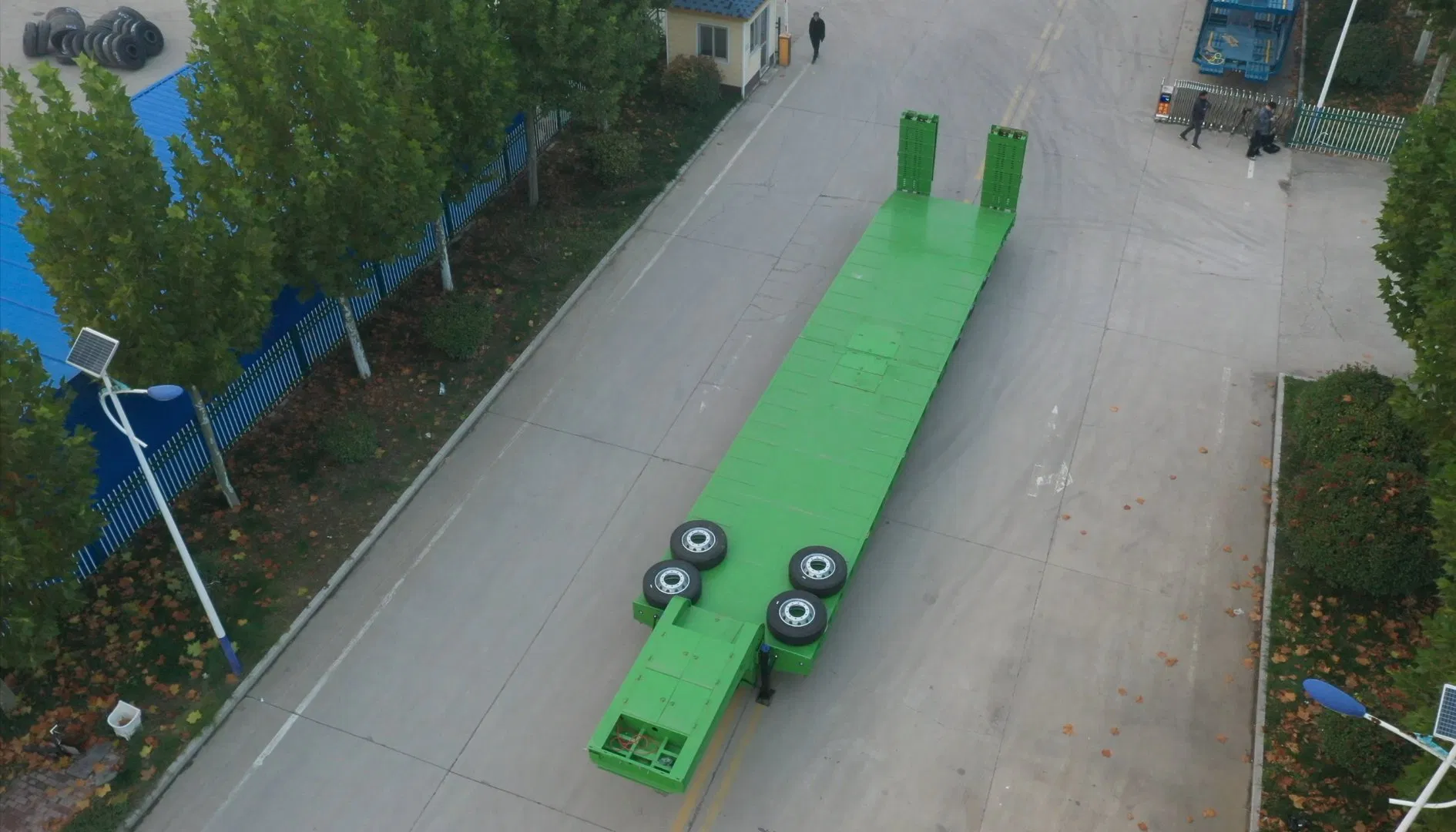

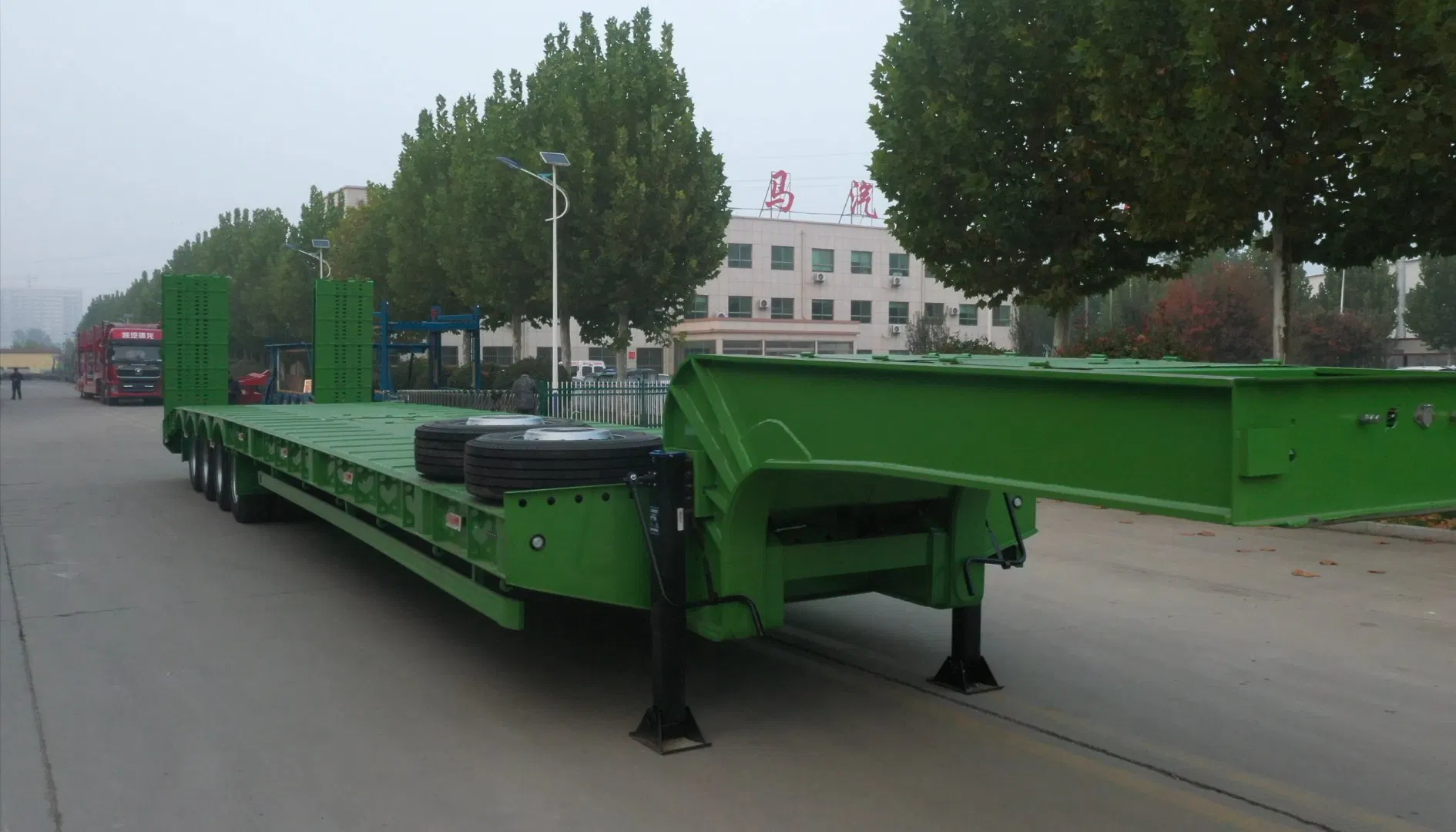

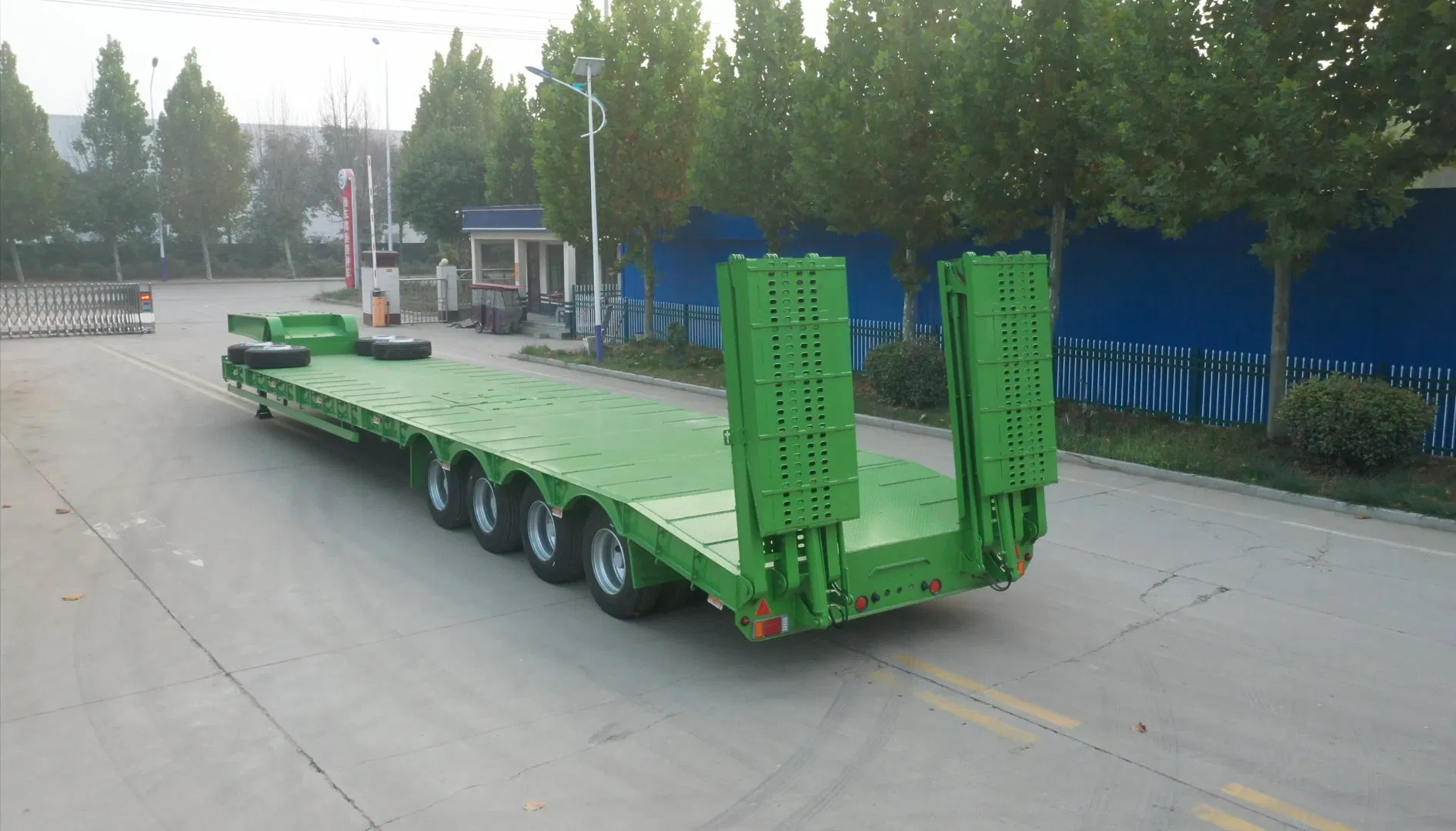

4 Axles 120T Heavy Haul Lowbed / Lowboy / Step Deck Truck Semi Trailer. This lowbed trailer is specifically designed for transporting heavy-duty equipment and oversized/overweight goods with a maximum load capacity of 120T.
| Technical Specifications | |
|---|---|
| Name | Extend lowbed trailer with 4 axles |
| Overall Size | 19750mm * 3200mm * 1250mm |
| Payload | Uniform load 120T |
| Axle | 18T longer axle * 4 pcs (BPW Brand) |
| Suspension | Mechanical suspension with 60 pin (Thicken and widen) |
| Tire | 315/80R22.5 * 16pcs (Linglong Brand) |

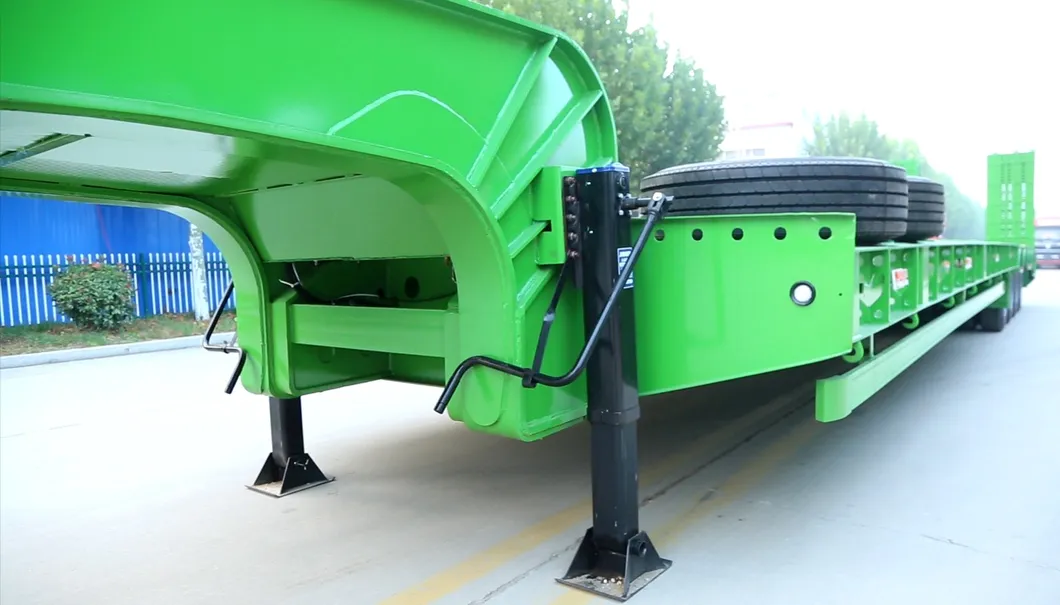

| Landing Gear | 28T Fuwa brand |
| Painting | Sand blasted, anti-rust paint + topcoat + spray wax |
Haul the heaviest equipment with confidence. The main beam uses Q590 material and adopts submerged arc welding technology, avoiding welding-opening problems. The main deck features a perimeter frame design with G-channel crossmembers every 30cm.

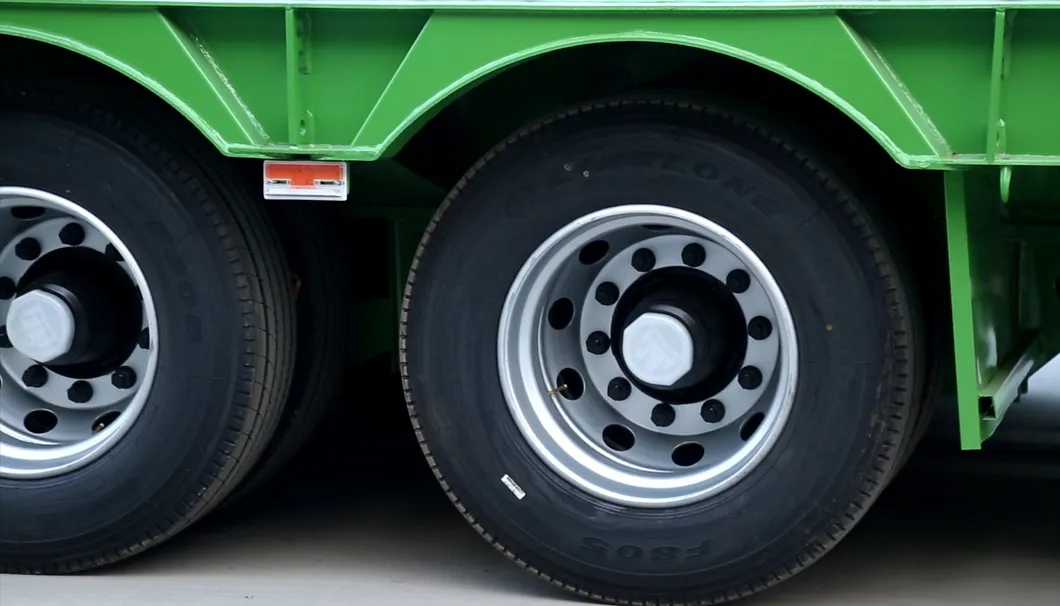

Equipped with BPW 18T load capacity axles. Multi-axle distribution improves stability and safety. Tires are 18-20 layers, significantly enhancing heavy-duty capacity and strength for harsh road conditions.

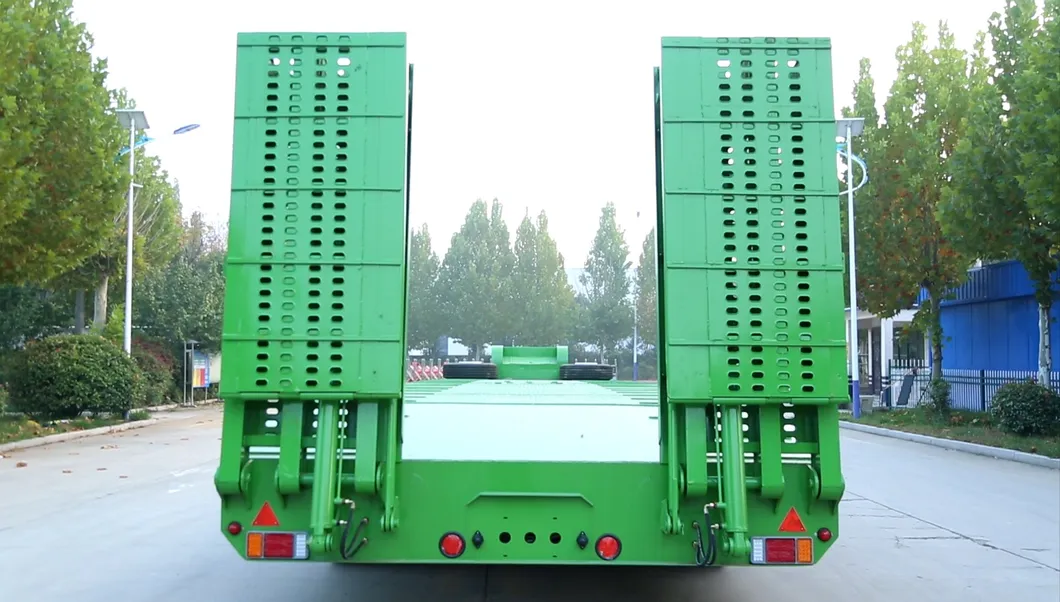

1. High efficiency: Fast rising and falling system.
2. Space utilization: Foldable design for easy transport.
3. Strong adaptability: Compatible with various loading platforms.

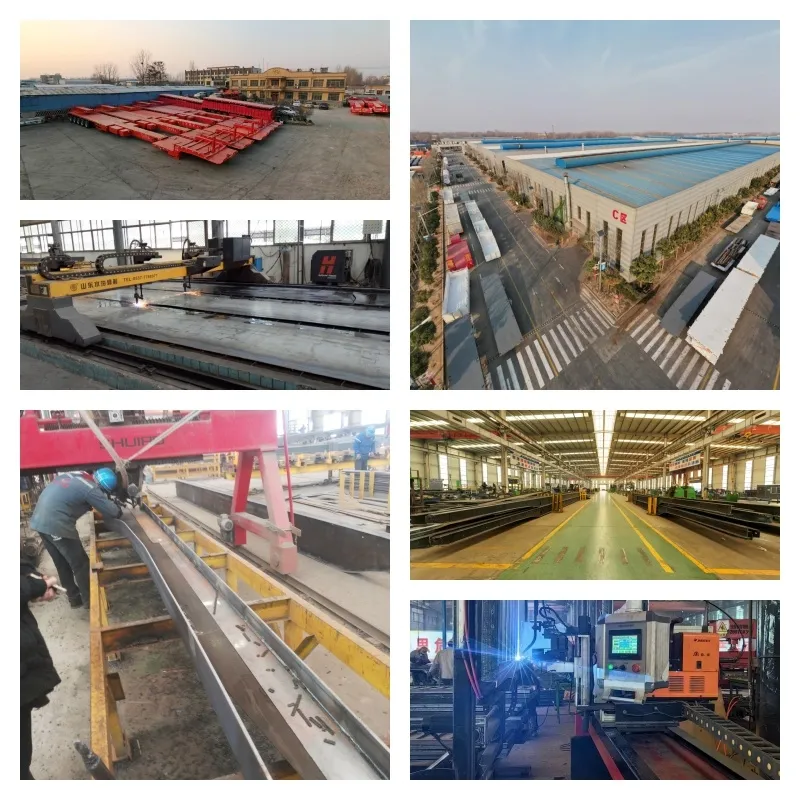

A professional manufacturer specialized in various semi-trailers, including wind turbine blade trailers, lowbed semi-trailers, and container trailers. Equipped with automatic welding lines and advanced spraying processes, the facility strictly follows international quality standards and is ISO certified.
