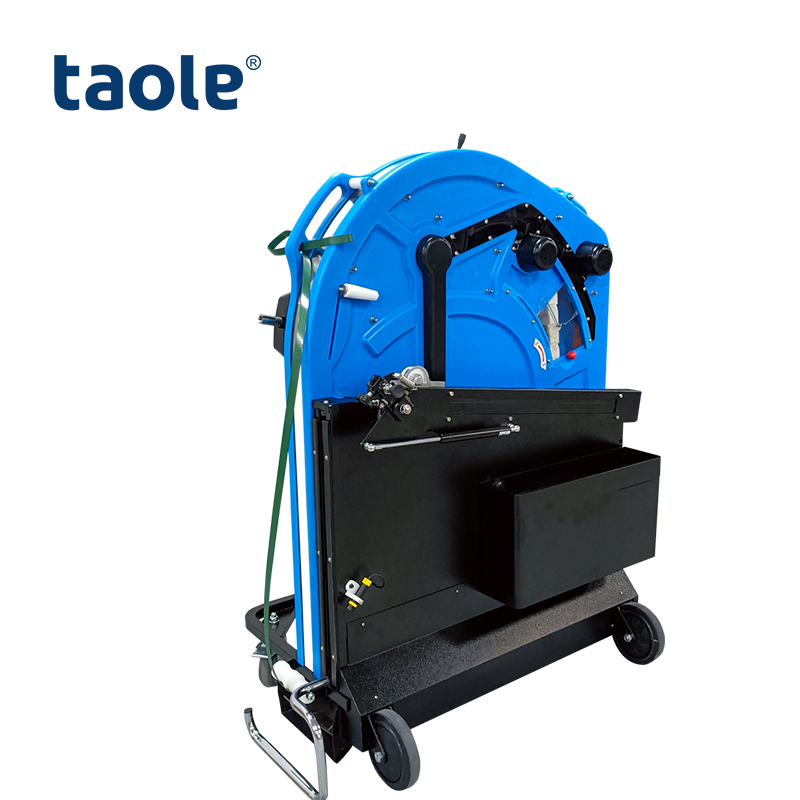

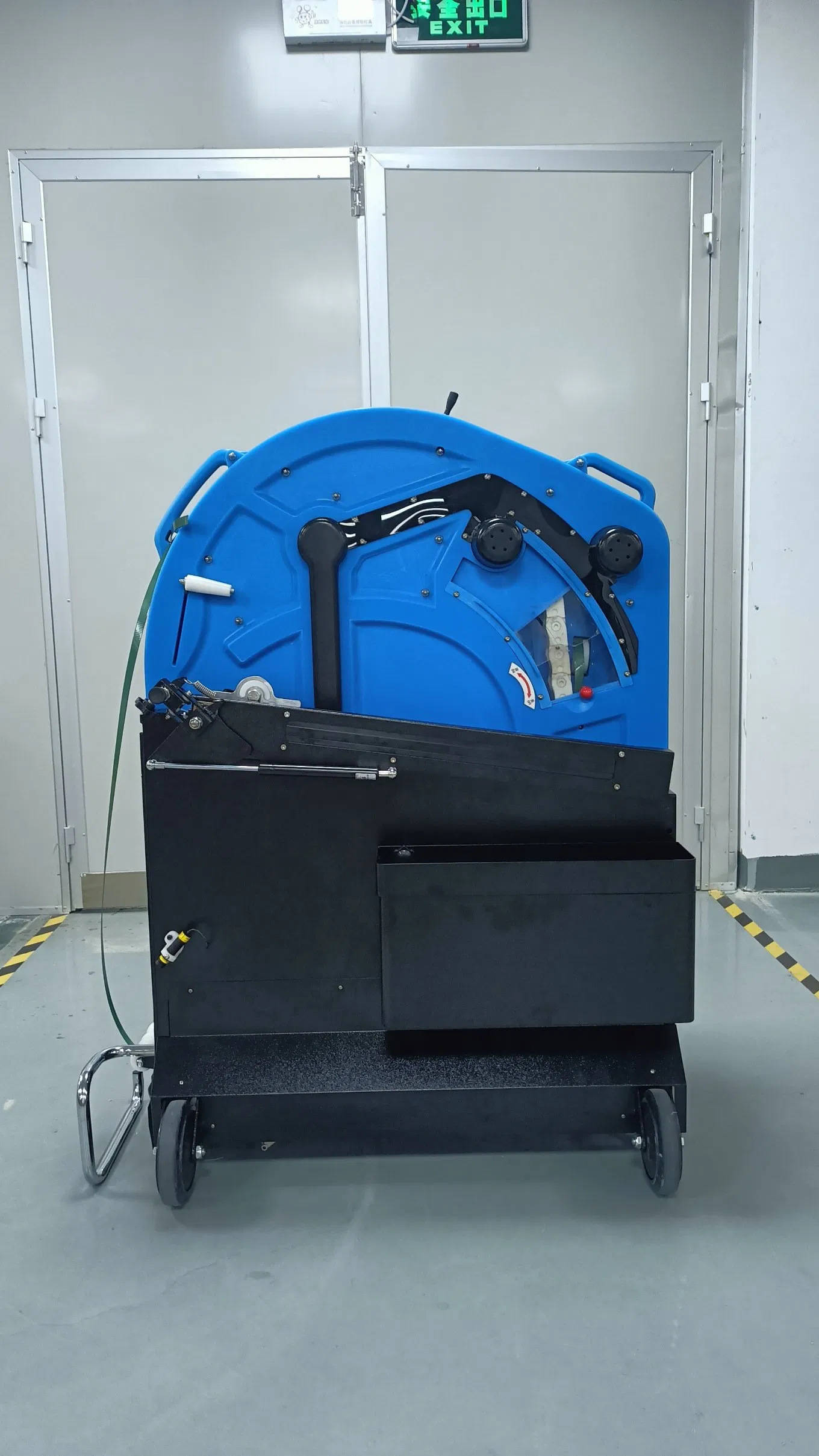

| Model | TP-800 Pallet Strapper |
| Chain Length | 9.3 meters |
| Packing Size | 200mm ≤ Width, 75mm ≤ Height ≤ 2.6 meters (Customizable to 3m) |
| Strap Width/Thickness | Width: 12-19mm | Thickness: 0.6-1.3mm |
| Chain Speeds | Horizontal: 40-54m/min | Vertical: 44-60m/min |
| Max Thrust | 320 N |
| Noise Level | 79 dB(A) |
| Weight | N.W 105 KGS / G.W 210 KGS |
| Lithium Battery | 33.3V/ 32Ah, Approx 150-400 Straps per charge |
| Charger | Input AC100-240V, 50-60Hz; Output DC 33.6V 10A |


Founded in 2004, we are a comprehensive enterprise specializing in the manufacturing, research and development, and design of automatic packaging equipment. With over 18 years of experience in both domestic and overseas markets, our engineering team continuously updates equipment for energy conservation, efficiency, and safety.
