5 Ton Single Double Girder Hydraulic Rubber Tyred Overhead Crane

1 / 5

5 Ton Single Double Girder Hydraulic Rubber Tyred Overhead Crane

Customization:	Available
After-sales Service:	Design Drawings and Installation Instructions
Warranty:	2 Year

Send Inquiry

Product Description

Overview & Basic Information

Model NO.

Single Girder Overhead Crane

Certification

CE, ISO9001

Condition

New

Operation Form

Remote Control

Max Lifting Height

>40m

Max Lifting Weight

20-50t

Main Girder Form

Single Girder

Type

Explosion-Proof

Transportation

Land or Sea Transport

Color

According to Requirements

Maximum Span

>20m

Production Capacity

1000 pieces/Year

Product Description

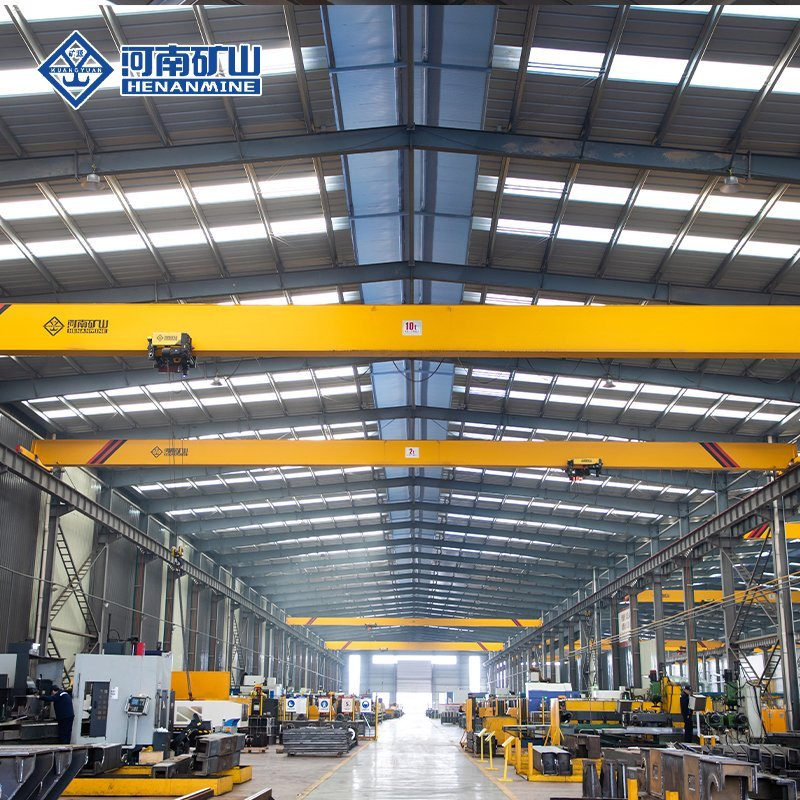

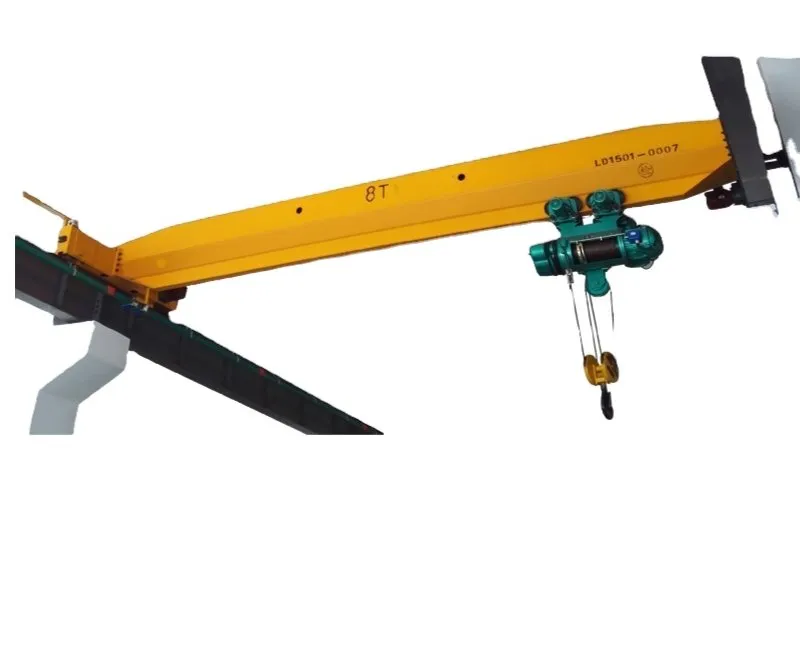

Single Girder Bridge Crane

A Single girder bridge crane is a type of overhead crane with parallel beams that support the hoist. This design allows it to carry heavier loads and cover wider spans. These cranes are commonly used in factories, warehouses, and construction sites for lifting and moving heavy materials efficiently and safely.

Application Areas

Lifting Capacity: 3 tons to 50 tons
Lifting Height: Up to 40 meters
Span: 8 meters to 40 meters
Core Components: PLC, gear reducer

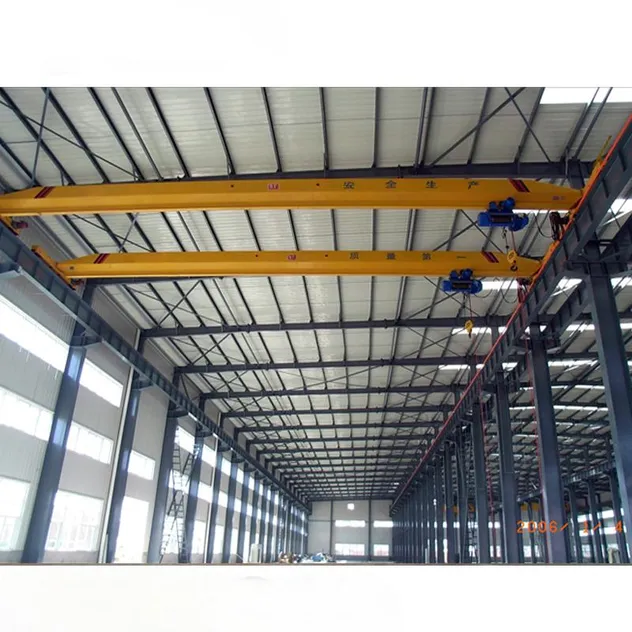

Industries: Factory workshops, warehousing & logistics, building materials, light metallurgy

Technical Specifications

Mechanism	Parameter	Value 1	Value 2
Crane Travelling	Working speed (m/min)	20 Ground	30 Ground
	Motor Type	YSE802-4	ZDR100L-4
	Power (kW)	2×0.8/4×0.8	2×1.5
Lifting Mechanism	Lifting speed	8	8/0.8
Lifting Mechanism	Protection	Weight overload / Low-voltage protection included
Operating Conditions	Voltage	380v 50Hz 3-phase

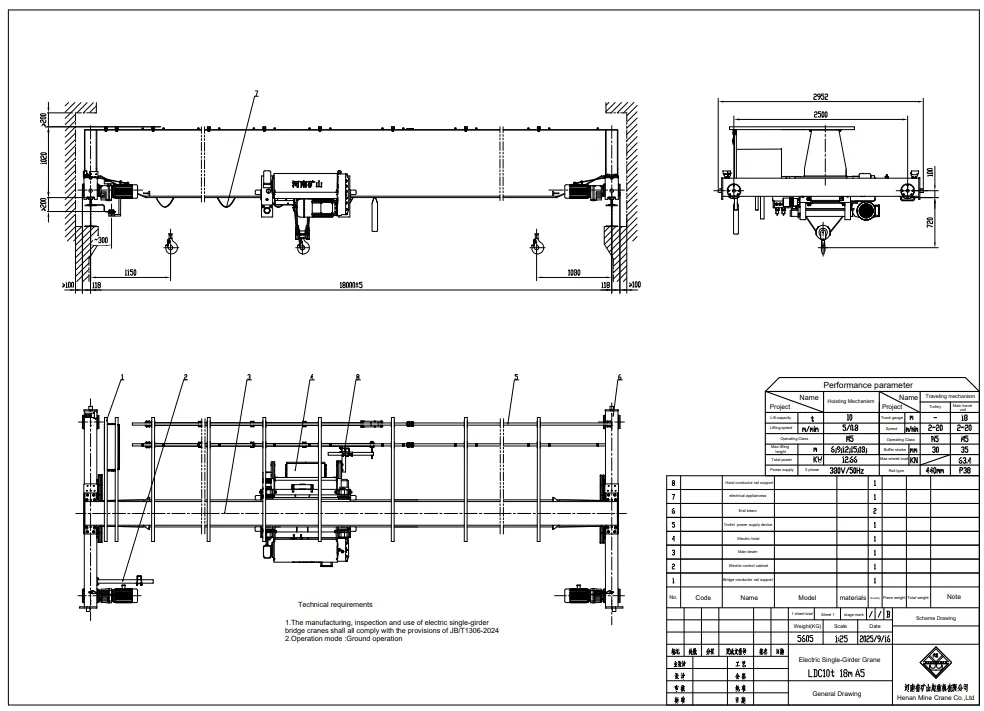

Drawings & Dimensions

Service & Capabilities

Standard Warranty: 12 months or 2,000 operating hours. Optional extended coverage up to 36 months. We provide 24/7 technical assistance and spare parts supply globally.

As a high-end crane manufacturer, our product range includes single girder, gantry, bridge, double girder, and jib cranes. We integrate advanced technology from global standards to provide high-performance, intelligent lifting solutions. Our equipment is widely used across various countries to improve industrial efficiency.
